• Model NO.：YD-FA0017
• Special Use：High-strength Steel Plate, Wear Resistant Steel, Cold Heading Steel, Free Cutting Steel
• Application：Structural Steel Bar
• Length：0.75m, 1m,2m,3m,5.8m,6m Cutting as Demand
• Accessories：Wing Nut, Hex Nut, Plate, Waterstop
• Surface：Plain, Zinc, HDG
• Certification：SGS
• Transport Package：Pallet,Bundle
• Specification：Dia15,17mm, Dia 20,22
• Trademark：YD
• Origin：China
• HS Code：730840
• Production Capacity：5000ton,Month

Basic Info.

Model NO. YD-FA0017 Special Use High-strength Steel Plate, Wear Resistant Steel, Cold Heading Steel, Free Cutting Steel Application Structural Steel Bar Length 0.75m, 1m,2m,3m,5.8m,6m Cutting as Demand Accessories Wing Nut, Hex Nut, Plate, Waterstop Surface Plain, Zinc, HDG Certification SGS Transport Package Pallet/Bundle Specification Dia15/17mm, Dia 20/22 Trademark YD Origin China HS Code 730840 Production Capacity 5000ton/Month

Product Description

Wall Formwork Scaffolding tie bars
YIDAO D15/17mm Tie Rod with Wing Nut for Wall Formwork scaffolding 190kn  Construction
Product Description

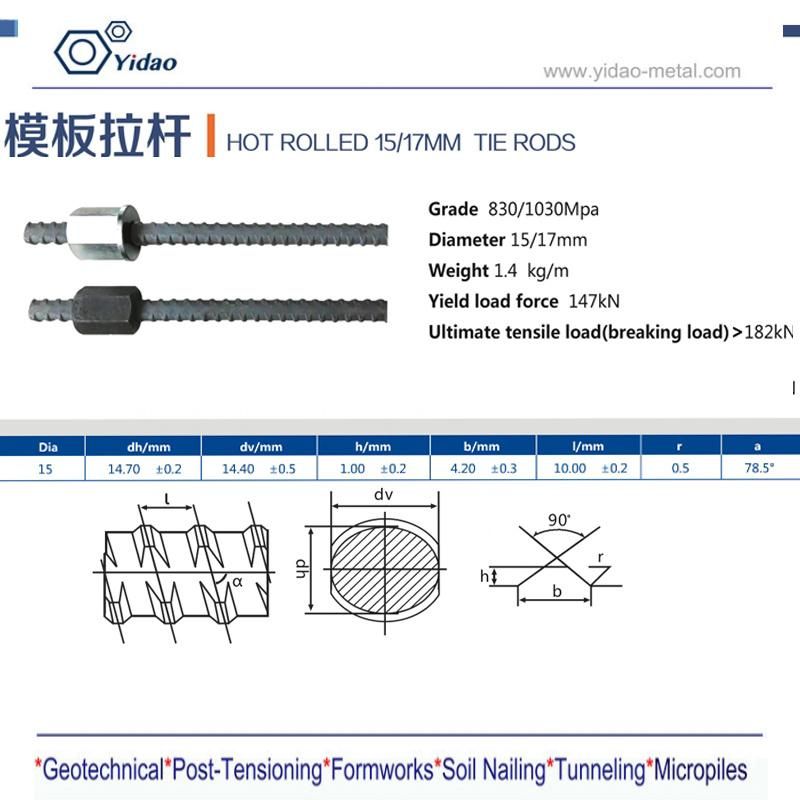

 1. Commodity Name: Hot Rolled Z Bar Dia 15/17mm  Tie Bar 190kN For Construction

 2. Diameter: 15/17mm

 3. Length:1m,2m,3m,6m cut as your demand

 4.Grade : 830/1030, actual break load force 190kN

 5.Accessories: anchor plate,hex nut,wing nut,water stopper,steel cone

 6.Certification: ISO9001-2008, SGS





Our hot rolled,continuous thread bar/tie rod Benefits as below:

1. full diameter and grade: Dia15/20/25/32/36/40/50mm, grade 500/830/930/1080MPa. over 10years, 5000MT per month, 30+ countries.
2. high load force 180kN TO 2200KN ;
3. coarse thread for self-cleaning, reusable and cost effective ;
4. easy installing, quick and save time ;
5. cut length or lengthen individually;
6. 5000MT stock,delivery fast.

More info, contact me Anna, +86 16630038170
