3/8 in 1 X 7 Ehs Galvanized Steel Guy Wire in Coil or on Reel Packing
Nanjing Suntay Steel Co., Ltd.- Certification：ISO
- Surface：Smooth
- Technique：Galvanized
- Application：Rope, Packaging, Netting, Manufacturing, Fencing, Construction
- Alloy or Not：Non-alloy
- Standard：BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Model NO.：GS-21-2

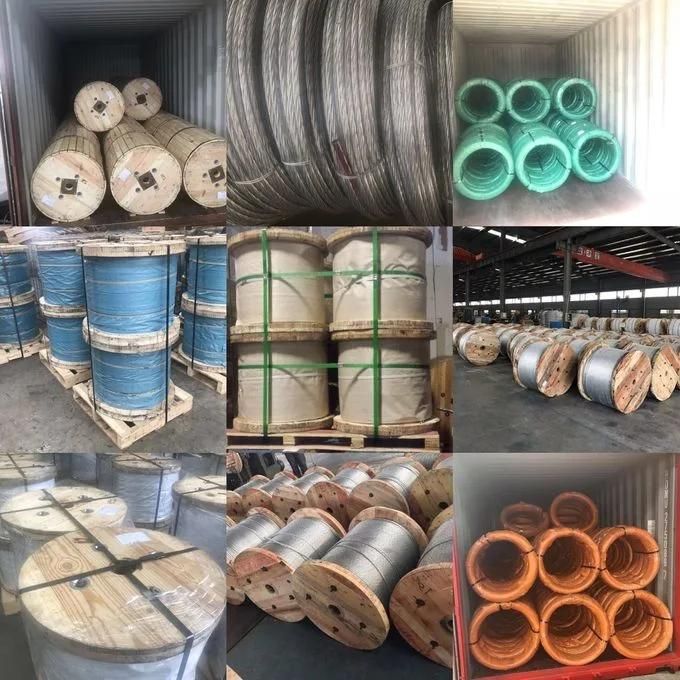

- Transport Package：Standard Export Packing on Reel
- Specification：1.0-4.8mm
- Trademark：Suntay
- Origin：Jiangsu, China
- HS Code：731210
- Production Capacity：50000tons,Year
Description
Basic Info.
Model NO. GS-21-2 Transport Package Standard Export Packing on Reel Specification 1.0-4.8mm Trademark Suntay Origin Jiangsu, China HS Code 731210 Production Capacity 50000tons/YearProduct Description
3/8 in 1 x 7 EHS Galvanized Steel Guy Wire
3/8 in 1 x 7 EHS Galvanized Steel Guy Wire
Applications:
Guy strand is used to add stability to a free-standing structure or tower. Overhead Ground Wire specification and 95% Zinc+ 5% Aluminum Mischmetal Alloy coating available upon request.
Standards:
Manufactured and inspected per ASTM A-475 and BS-183 Manufactured and inspected per A-855, ASTM A-363, A-92
Specifications*:
Strand Diameter Inches: 3/8"
Wires Per Strand: 7
Approximate Cable Weight: 273lbs per 1000ft
Minimum Breaking Strength In Pounds:
Utilities Grade: 11500 lbs
Siemens Martin Grade: 6950 lbs
High Strength Grade: 10800 lbs
Extra High Strength Grade: 15400 lbs
Zinc Coating: 100%
Minimum Weight of Coating OZ/SQ FT:
Class A: .85
