• Model NO.：15.9-63.5mm
• 201ni%：>1%
• 304ni%：>8%
• 316ni%：>10%
• 304,316 C%：<0.08%
• 304L,316L C%：<0.03%
• Diameter Tolerance：-0.02,+0.02mm
• Thickness Tolerance：-0.05,+0.05mm
• Length Tolerance：-0.5mm,+0.5mm
• Round Pipe Size：16-63.5mm
• Delivery：15-20days
• Transport Package：Seaworthy Packing
• Specification：diameter: 16-63.5mm
• Origin：China
• HS Code：730640000
• Production Capacity：1000tons,Month

Material:Grade:201,202,304,316,430
Different grade can meet different customer's requirementProduct Specs:A:Round pipe

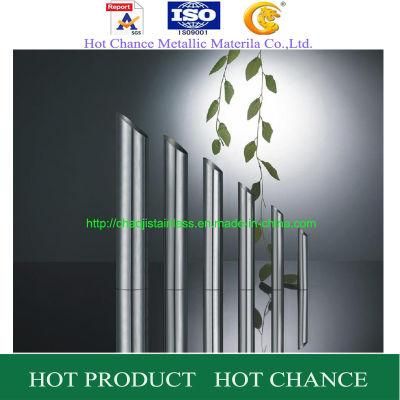

8,9,10,12.7,15.9,19.05,20,22,25.4,28,31.8,38.1,42.4,50.8,63.5,76.2,88.9,101.6,114

B:Rectangular pipe10x30,10x40,10x50,10x75,10x80,10x90,10x100,20x40,20x80,20x100,25x38,25x50,25x75 etc.

C. Square pipe
10*10,12*12,15*15,20*20,19*19,25*25,30*30,40*40,50*50,60*60,80*80,100*100,150*150

D:Double-shot pipe [external diameter X ( Slot depth X width )]
50.8x(15x15),63.5x(20x20),76.2x(25x25)

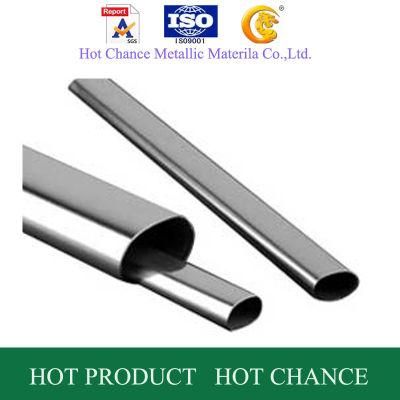

E:Elliptical single slot pipe [external size X ( Slot depth X width )]
40x80x(24*24),40x110x(26x33)


F. Square and rectangular slot pipe[external size X ( Slot depth X width )]
40*40(24*24), 40*40(15*15),50*50(15*15),40*60(24*24)Length:standard is 6M,special length can be customizedChemical CompositionComposition201202304316430C≤0.15≤0.15≤0.08≤0.08≤0.12Si≤1.00≤1.00≤1.00≤1.00≤1.00Mn5.5-7.57.5-10≤2.00≤2.00≤1.00P≤0.06≤0.06≤0.045≤0.045≤0.040S≤0.03≤0.03≤0.030≤0.030≤0.030Ni0.8-1.04-68-10.510-14 Cr16-1817-1918-2016-1816-18Finish:1.Satin
2.400#
3.600~1000# mirror
4.HL brushedProduction Capacity1000 tons per monthApplicationdecorative /industrial/building materialMin.bending radius:A:38.1~50.8=RX1M
B:63.5~76.2=RX1.5-2.5M
C:88.9~101.6=RX3-4.5MProduction process:Turn on the roll -- solder side-forming -- weld -- weld the seam inner&external --polishing&fix melting -- fix the diameter&to be straight -- vortex test -- cuted by saw -- press test -- final test -- packageDelivery time20-30days after order ,according to customer's order quantity.Packing:Every tube is sleeved in plastic bag individually, and then 10pcs/bundle or 50 pcs/bundle.We can pack as clients' requirement.Payment Terms:T/T 30% deposit,70% balance should be paid before shipment;L/C,D/P are availableValidity:Valid time is 3 days for price usually.
