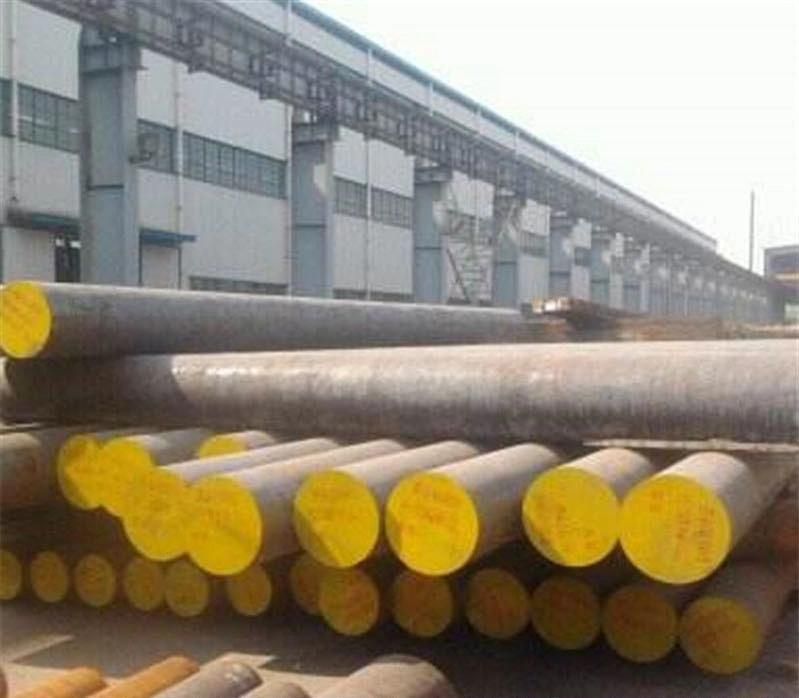

4130 4140 Forged Steel Round Bar Forging Flat Bars Steel Plates
Laiwu Xincheng Metal Co., Ltd.- Type：Alloy Steel Bar
- Standard：AISI, ASTM, GB, JIS, DIN, BS
- Technique：Forged
- Application：Structural Steel Bar, Tool Steel Bar, Die Steel Bar
- Alloy：Alloy
- Delivery Condition：Forged , Forged+Rough Turned
Base Info
- Model NO.：ASTM4140
- Heat Treatment：Annealed, Normalized, Qt
- MOQ：One Piece
- Grades：SAE 4140 En19 42CrMo4
- Transport Package：Standard Sea Worthy
- Specification：200-1000mm
- Origin：China
- Production Capacity：3000tons,Month
Description
0.15-0.30EN10083 1.7225 JIS G4105 SCM440 0.38-0.43 0.15-0.35 0.6-0.85 ≤ 0.035 ≤ 0.04 0.9-1.2 0.15-0.30 GB 3077 42CrMo 0.38-0.45 0.17-0.37 0.5-0.80 ≤ 0.035 ≤ 0.035 0.9-1.2 0.15-0.25 BS 970 EN19 0.35-0.45 0.15-0.35 0.5-0.80 ≤ 0.035 ≤ 0.035 0.9-1.5 0.2-0.40
7.42crmoSteel Application
42crmo steel finds many applications as forgings for the aerospace,oil and gas,automotive, agricultural and defense industries etc.
Typical applications for 42crmo steel uses include:forged gears,spindles,fixtures,jigs,collars,Axles,conveyor parts,crow bars,logging parts,shafts,sprockets,studs,pinions,pump shafts, rams, and ring gears etc
8.Quality control:
1. Melting Process: EAF/BOF+LF+VD resulting in ingots
2. Both ends cut by saw
3. Ratio of forging:minimum 3:1
4. Grain size of final product: according to ASTM E112 more than 5,preferred more than 8
5. Ultrasonic test: As per SEP1921 Class C/c or D/d
9.Heat treatment of 42crmo Steel
Quenched and Tempered (+QT) of EN19 Steel
1. Heat 42crmo steel slowly to 840-875°C;
2. Soak at this temperature then quench in oil;
3. Temper as soon as 42crmo reach room temperature (20°C);
4. Heat uniformly to the suitable temperature of 560°C;
5. Withdraw the material from the furnace and cool in the air.
Annealing of 42crmo Alloy Steel
1. Heat the 42crmoslowly to 800-850°C and allow enough time.
2. Cool slowly in the furnace to 480°C followed by air cooling
10.MOQ: one piece per size/grade
11.Payment term: FOB CIF CFR EXW and so on
12.Delivery time : 7 to 30 days after deposit received.
4130 4140 Forged Steel Round Bar Forging Flat Bars Steel Plates
4130 4140 Forged Steel Round Bar Forging Flat Bars Steel Plates
4130 4140 Forged Steel Round Bar Forging Flat Bars Steel Plates
7.42crmoSteel Application
42crmo steel finds many applications as forgings for the aerospace,oil and gas,automotive, agricultural and defense industries etc.
Typical applications for 42crmo steel uses include:forged gears,spindles,fixtures,jigs,collars,Axles,conveyor parts,crow bars,logging parts,shafts,sprockets,studs,pinions,pump shafts, rams, and ring gears etc
8.Quality control:
1. Melting Process: EAF/BOF+LF+VD resulting in ingots
2. Both ends cut by saw
3. Ratio of forging:minimum 3:1
4. Grain size of final product: according to ASTM E112 more than 5,preferred more than 8
5. Ultrasonic test: As per SEP1921 Class C/c or D/d
9.Heat treatment of 42crmo Steel
Quenched and Tempered (+QT) of EN19 Steel
1. Heat 42crmo steel slowly to 840-875°C;
2. Soak at this temperature then quench in oil;
3. Temper as soon as 42crmo reach room temperature (20°C);
4. Heat uniformly to the suitable temperature of 560°C;
5. Withdraw the material from the furnace and cool in the air.
Annealing of 42crmo Alloy Steel
1. Heat the 42crmoslowly to 800-850°C and allow enough time.
2. Cool slowly in the furnace to 480°C followed by air cooling
10.MOQ: one piece per size/grade
11.Payment term: FOB CIF CFR EXW and so on
12.Delivery time : 7 to 30 days after deposit received.
