A572 Steel Plates

Guangzhou Kingmetal Steel Industry Co., Ltd.
  • Type:Steel Plate
  • Standard:ASTM, AISI, DIN, En
  • Certification:ISO, IBR
  • Surface Treatment:Milling
  • Technique:Hot Rolled
  • Application:Ship Plate, Boiler Plate, Container Plate

Base Info

  • Model NO.:KM-20200603
  • Stock:Stock
  • Transport Package:in Bundles
  • Specification:Thickness:6~300mm,Width:1500~3000mm,Length:2~12m
  • Trademark:kingmetal
  • Origin:China
  • HS Code:7326901900
  • Production Capacity:10000 Ton,Month

Description

Thickness6mm-300mmWidth1500mm-4050mmLength3000mm-15000mmGradeASTM A572 Grade 50

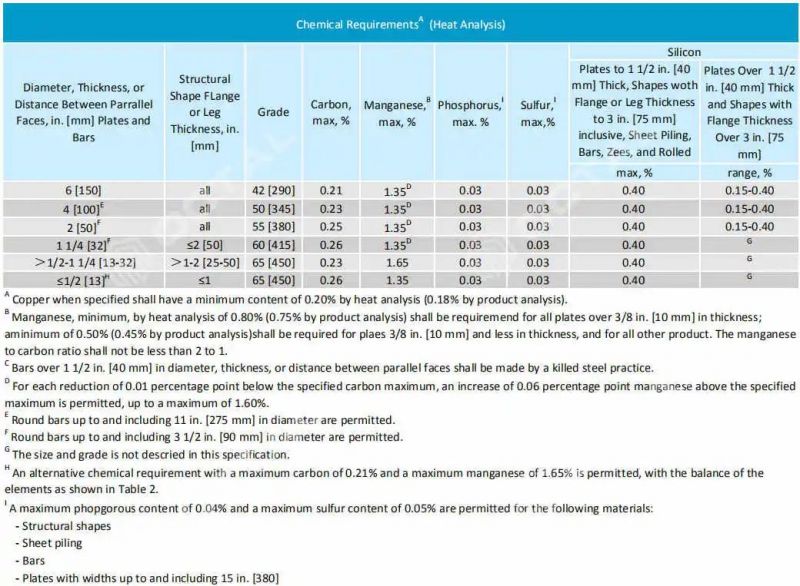

CHEMICAL COMPOSITION OF ASTM A572 GRADE 50 PLATE

A572 Grade 50  Chemical Composition

Grade

The Element Max (%)

C

Mn

P

S

Si

CO

Ni

V

A572 Grade 50

0.23

1.35

0.04

0.05

0.4

0.05

0.015

0.06

MECHANICAL PROPERTIES OF ASTM A572 GRADE 50 PLATE

Thickness(mm)Min Yield (Mpa)Tensile(MPa)Elongation(%)8mm-50mm345Mpa450Mpa21%50mm-200mm345Mpa450Mpa18%
