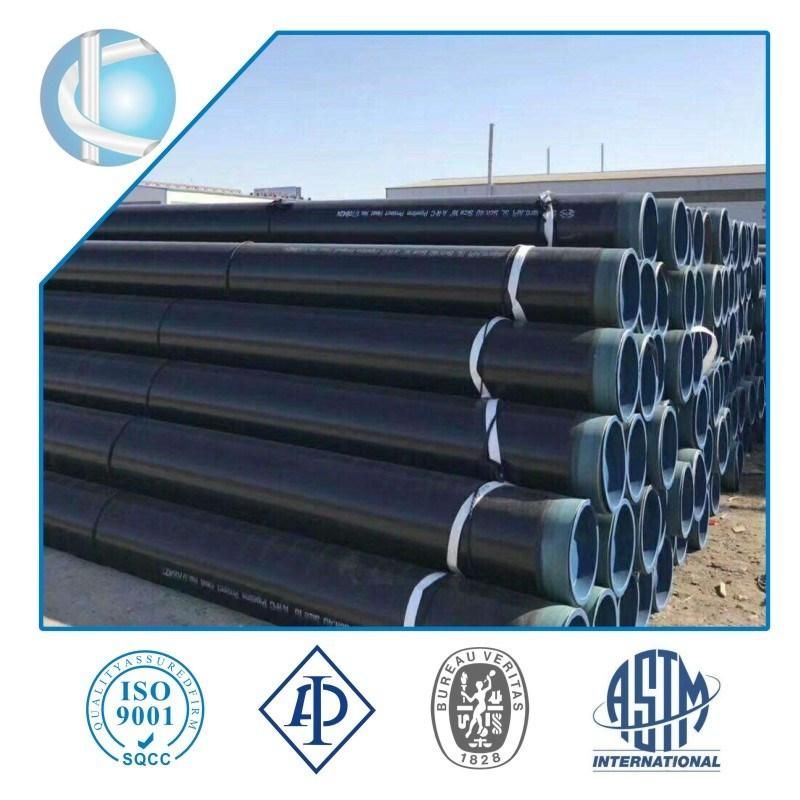

API 5L Psl1, Psl2 3PE/3PP Layer Coating Carbon Steel Pipe
CANGZHOU KAIWEI PIPELINE CO., LTD.- Type：Welded
- Technique：SAW
- Material：Carbon Steel
- Surface Treatment：Black
- Usage：Pipeline Transport, Boiler Pipe, Hydraulic,Automobile Pipe, Oil,Gas Drilling, Food,Beverage,Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
- Section Shape：Round
Base Info
- Model NO.：12-3010mm
- Temperature Classification：High Temperature Piping
- MPa Classfication：High Pressure Piping
- Standard：ASTM, GB, API, DIN, JIS
- Cross-Section Shape：Round
- Connection Type：Welding
- Diameter：219mm-3020mm
- Medium：Liquid or Gas
- Transport Package：Container
- Specification：219mm-3020mm
- Trademark：KAIWEI
- Origin：China
- Production Capacity：300000ton
Description
≥1701.8 2.5 100<DN≤250 2.0 2.7 250<DN<500 2.2 2.9 500≤DN<800 2.5 3.2 DN≥800 3.0 3.7
Properties of the Epoxy Powder
Properties of Fusion Bonded Epoxy Coating
Properties of adhesive
FAQ
Q1:How about thequality?
A:Third party inspections are always welcomed. Like BV, SGS etc.
Q2: How long is the delivery time?
A: Generally about 5-10 days if the goods in stock. Or will be 15-20 days if the goods are not in stock. And also
according to the quantity.
Q3:Do you provide samples? Free or not?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
Q4:May I customize the steel pipe?
A:Sure you can, we can produce according to your requirement, you can send the CAD or
design drawing.
Q5:Any value-added Services?
A:Fottunately for you,we are very experience in this industry. We have equipped our warehouse with the necessities
to perform in-house painting,coating,pipe cutting, etc.
Q6: How about the trade terms?
A: EXW, FOB, CFR, CIF, LC will be accepted.
Properties of the Epoxy Powder
| NO. | Item | Indexes |
| 1 | Size distribution(%) | 150μm oversize powder≤3.0 250μm oversize powder≤0.2 |
| 2 | Volatiles(%) | ≤0.6 |
| 3 | Density(g/m3) | 1.3-1.5 |
| 4 | Gel time(230ºC)/(S) | 15-30 |
| 5 | Fixed time(230ºC)/(min) | ≤3 |
Properties of Fusion Bonded Epoxy Coating
| NO. | Item | Indexes |
| 1 | Adhesive(grade) | ≤2 |
| 2 | Cathodic disbonding(65ºC,48h)/(mm) | ≤8 |
| 3 | Cathodic disbonding(65ºC,30h)/(mm)) | ≤15 |
| 4 | Counter bending(-20,2.5) | No cracks |
Properties of adhesive
| NO. | Item | indexes |
| 1 | Density (g/m3) | 0.920-0.950 |
| 2 | MFR(190ºC,2.16kg)/(g/10min) | ≥0.7 |
| 3 | Vicat softening point(ºC) | ≥90 |
| 4 | Brittle temperature(ºC) | ≤-50 |
| 5 | Oxidation induction time(OIT) (200ºC)/(min) | ≥10 |
| 6 | Moisture content(%) | ≤0.1 |
| 7 | Tensile strength(MPa) | ≥17 |
| 8 | Elongation at break(%) | ≥600 |
FAQ
Q1:How about thequality?
A:Third party inspections are always welcomed. Like BV, SGS etc.
Q2: How long is the delivery time?
A: Generally about 5-10 days if the goods in stock. Or will be 15-20 days if the goods are not in stock. And also
according to the quantity.
Q3:Do you provide samples? Free or not?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
Q4:May I customize the steel pipe?
A:Sure you can, we can produce according to your requirement, you can send the CAD or
design drawing.
Q5:Any value-added Services?
A:Fottunately for you,we are very experience in this industry. We have equipped our warehouse with the necessities
to perform in-house painting,coating,pipe cutting, etc.
Q6: How about the trade terms?
A: EXW, FOB, CFR, CIF, LC will be accepted.
