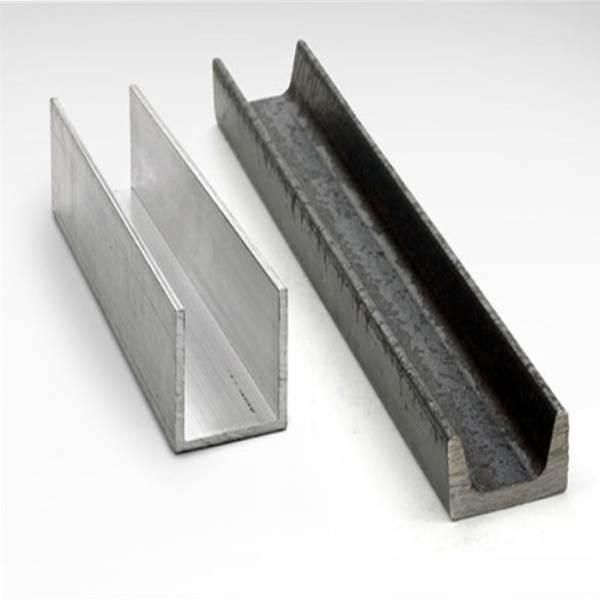

JIS Standard Steel Channel Bar for Construction
Guangzhou Kingmetal Steel Industry Co., Ltd.- After-sales Service：Change
- Warranty：1 Year, 1 Year
- Type：Welded, Equal, Unequal
- Technique：Hot Rolled, Hot Rolled
- Material：Carbon Steel
- Usage：Construction & Decoration
Base Info
- Section Shape：Square
- Standard：AISI, ASTM, GB, ASTM, JIS, AISI
- Certification：UL, RoHS
- Wall Thickness：Thin
- Surface Treatment：Galvanized
- Alloy：Non-Alloy
- After-Sales Service：Change,Return
- Shape：U Channel
- Perforated：Not Perforated
- Length：6m, 9m, 12m
- Process Method：Hot Rolled, Cold Rolled
- Chinese Standard Size：50*37*4.5mm 400*104*14.5mm
- Japanese Standard Size：50*25*3mm-300*90*13mm
- Steel Grade：Ss400, A36, S235, Q235, Q345 etc.
- Surface：Black, Galvanized
- Loading Port：Tianjin
- Transport Package：Seaworthy Bundle Packing or as Required
- Specification：ASTM, JIS, GB
- Trademark：Kingmetal
- Origin：Made in China
- HS Code：722830
- Production Capacity：8000ton,Month
Description
Basic Info.
Section Shape Square Standard AISI, ASTM, GB, ASTM, JIS, AISI Certification UL, RoHS Wall Thickness Thin Surface Treatment Galvanized Alloy Non-Alloy After-Sales Service Change/Return Shape U Channel Perforated Not Perforated Length 6m, 9m, 12m Process Method Hot Rolled, Cold Rolled Chinese Standard Size 50*37*4.5mm 400*104*14.5mm Japanese Standard Size 50*25*3mm-300*90*13mm Steel Grade Ss400, A36, S235, Q235, Q345 etc. Surface Black, Galvanized Loading Port Tianjin Transport Package Seaworthy Bundle Packing or as Required Specification ASTM, JIS, GB Trademark Kingmetal Origin Made in China HS Code 722830 Production Capacity 8000ton/MonthProduct Description
JIS Standard Steel Channel Bar for ConstructionMaterial: SS400, A36, S235, JRG1, Q235, Q345 etc.
Standard: GB/ JIS/ ASTM
Chinese Standard Size: 50*37*4.5mm 400*104*14.5mm
Japanese Standard Size: 50*25*3mm-300*90*13mm
Length: 6meter, 9meter, 12meter
Process Method: Hot rolled, cold rolled
Packing: In Bundle, Fasten by wire rod with tags. Or according to client's requests.
Size (mm) | Thickness (mm) | Thickness (mm) | Weight (kg/m) |
50*25 | 3.00~5.00 | 6.00 | 2.37~3.46 |
75*40 | 3.80 | 7.00 | 5.30 |
75*40 | 4.00 | 7.00 | 5.60 |
75*40 | 4.50 | 7.00 | 5.85 |
75*40 | 5.00 | 7.00 | 6.92 |
100*50 | 3.80 | 6.00 | 7.30 |
100*50 | 4.20 | 6.00 | 8.03 |
100*50 | 4.50 | 7.50 | 8.97 |
100*50 | 5.00 | 7.50 | 9.36 |
125*65 | 5.20 | 6.80 | 11.66 |
125*65 | 5.30 | 6.80 | 12.17 |
125*65 | 5.50 | 8.00 | 12.91 |
125*65 | 6.00 | 8.00 | 13.40 |
150*75 | 5.50 | 7.30 | 14.66 |
150*75 | 5.70 | 10.00 | 16.71 |
150*75 | 6.00 | 10.00 | 17.90 |
150*75 | 6.50 | 10.00 | 18.60 |
150*75 | 9.00 | 12.50 | 24.00 |
200*80 | 7.50 | 11.00 | 24.60 |
200*90 | 8.00 | 13.50 | 30.30 |
250*90 | 9.00 | 13.00 | 34.60 |
300*90 | 9.00 | 13.00 | 38.10 |
