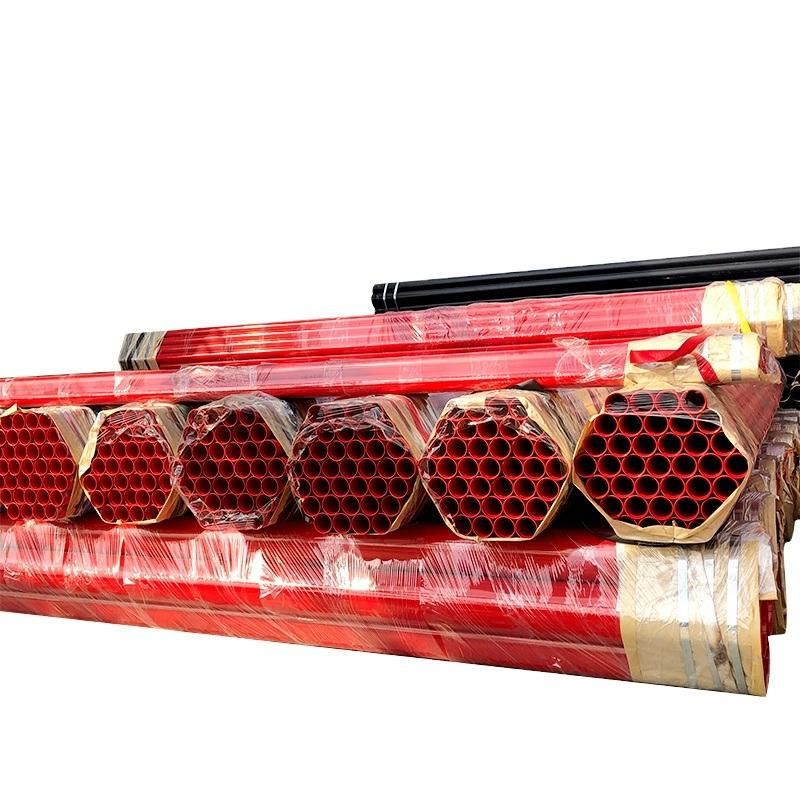

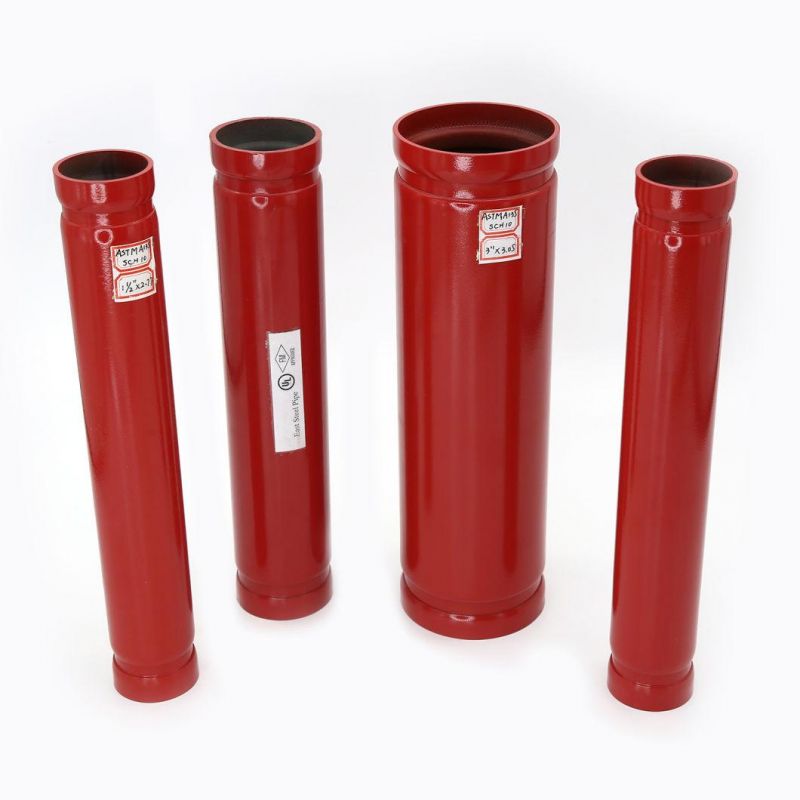

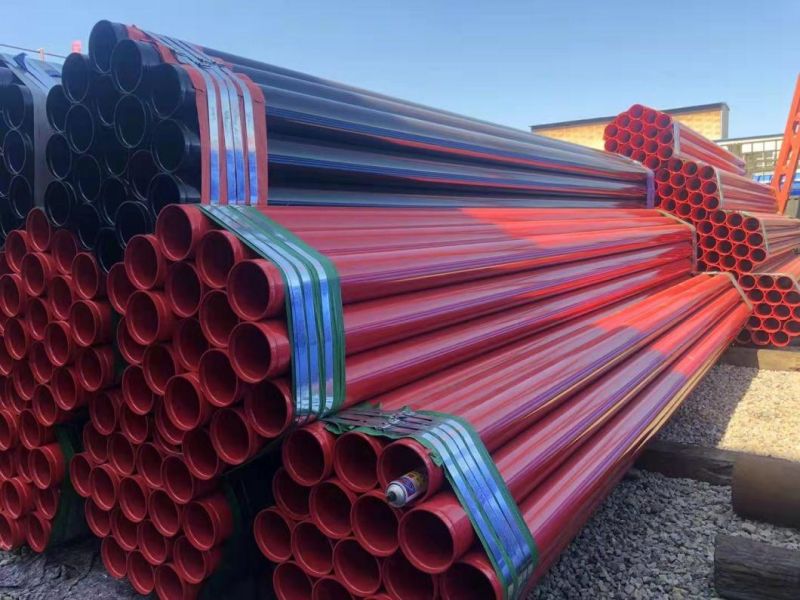

FM Certificate Fire Sprinkler Steel Pipes 1/2"-12" Red Blue Black Yellow Grey Painted Inner Epoxy Resin Coating Outer PE Anti Erosion Steel Tube / Circular Pipe
Shandong Jichang Import and Export Co., Ltd.- After-sales Service：Provided
- Warranty：Provided
- Type：Seamless
- Technique：ERW
- Material：Carbon Steel
- Surface Treatment：Black
Base Info
- Model NO.：Fire Fighting Sprinkler Pipe
- Usage：Pipeline Transport, Boiler Pipe, Hydraulic,Automobile Pipe, Oil,Gas Drilling, Food,Beverage,Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
- Section Shape：Round
- Model Number：Q195,Q235,Q235B,Q335,Q345
- Application：Fire Fighting Pipeline
- Name：Seamless Steel Tube
- Grade：ASTM and etc.
- Samples：Free Sample for Quality Test
- Transport Package：Standard Seaworthy Package
- Specification：carbon steel tube
- Trademark：Jichang
- Origin：Shandong, China
Description
O.D.SCH 10 SCH 30/40 W.T. NORMAL WEIGHT W.T. NORMAL WEIGHT (mm) (INCH) (mm) (inch) (mm) (inch) (kg/mtrs) (lbs/ft) (mm) (inch) (kg/mtrs) (lbs/ft) 15 1/2'' 21.30 0.840 ---- ---- ---- ---- 2.77 0.109 1.27 0.85 20 3/4'' 26.70 1.050 2.11 0.083 1.28 0.96 2.87 0.113 1.69 1.13 25 1'' 33.40 1.315 2.77 0.109 2.09 1.41 3.38 0.133 2.50 1.68 32 1.1/4'' 42.20 1.660 2.77 0.109 2.69 1.81 3.56 0.140 3.39 2.27 40 1.1/2'' 48.30 1.900 2.77 0.109 3.11 2.09 3.68 0.145 4.05 2.72 50 2'' 60.30 2.375 2.77 0.109 3.93 2.64 3.91 0.154 5.45 3.66 65 2.1/2'' 73.00 2.875 3.05 0.120 5.26 3.53 5.16 0.203 8.64 5.80 80 3'' 88.90 3.500 3.05 0.120 6.46 4.34 5.49 0.216 11.29 7.58 90 3.1/2'' 101.60 4.000 3.05 0.120 7.41 4.98 5.74 0.226 13.58 9.12 100 4'' 114.30 4.500 3.05 0.120 8.37 5.62 6.02 0.237 16.09 10.80 125 5'' 141.30 5.563 3.40 0.134 11.58 7.78 6.55 0.258 21.79 14.63 150 6'' 168.30 6.625 3.40 0.134 13.85 9.30 7.11 0.280 28.29 18.99 200 8'' 219.10 8.625 4.78 0.188 25.26 16.96 7.04 0.277 36.82 24.72 250 10'' 273.10 10.750 4.78 0.188 31.62 21.23 7.08 0.307 51.05 34.27
N.D.O.D. SCH 10 SCH 30/40 W.T. NORMAL WEIGHT W.T. NORMAL WEIGHT (mm) (INCH) (mm) (inch) (mm) (inch) (kg/mtrs) (lbs/ft) (mm) (inch) (kg/mtrs) (lbs/ft) 15 1/2'' 21.30 0.840 ---- ---- ---- ---- 2.77 0.109 1.27 0.85 20 3/4'' 26.70 1.050 2.11 0.083 1.28 0.96 2.87 0.113 1.69 1.13 25 1'' 33.40 1.315 2.77 0.109 2.09 1.41 3.38 0.133 2.50 1.68 32 1.1/4'' 42.20 1.660 2.77 0.109 2.69 1.81 3.56 0.140 3.39 2.27 40 1.1/2'' 48.30 1.900 2.77 0.109 3.11 2.09 3.68 0.145 4.05 2.72 50 2'' 60.30 2.375 2.77 0.109 3.93 2.64 3.91 0.154 5.45 3.66 65 2.1/2'' 73.00 2.875 3.05 0.120 5.26 3.53 5.16 0.203 8.64 5.80 80 3'' 88.90 3.500 3.05 0.120 6.46 4.34 5.49 0.216 11.29 7.58 90 3.1/2'' 101.60 4.000 3.05 0.120 7.41 4.98 5.74 0.226 13.58 9.12 100 4'' 114.30 4.500 3.05 0.120 8.37 5.62 6.02 0.237 16.09 10.80 125 5'' 141.30 5.563 3.40 0.134 11.58 7.78 6.55 0.258 21.79 14.63 150 6'' 168.30 6.625 3.40 0.134 13.85 9.30 7.11 0.280 28.29 18.99 200 8'' 219.10 8.625 4.78 0.188 25.26 16.96 7.04 0.277 36.82 24.72 250 10'' 273.10 10.750 4.78 0.188 31.62 21.23 7.08 0.307 51.05 34.27
More details welcome contact us online~
