• Model NO.：KM-244
• Lenght：3~12m or as Required
• MOQ：500kgs
• Certificate：ISO, CE, SGS, BV
• Surface：Annealing, Pickling, Polishing, Bright, Sand Blas
• Delivery Times：15 Days
• Thickness：Sch5s~Sch160, Xxs
• Transport Package：Standard Export Sea-Worthy Packing
• Specification：1,2"~64"
• Trademark：KINGMETAL
• Origin：Chinese Main Port
• Production Capacity：1000 Tons , Month

Basic Info.

Model NO. KM-244 Lenght 3~12m or as Required MOQ 500kgs Certificate ISO, CE, SGS, BV Surface Annealing, Pickling, Polishing, Bright, Sand Blas Delivery Times 15 Days Thickness Sch5s~Sch160, Xxs Transport Package Standard Export Sea-Worthy Packing Specification 1/2"~64" Trademark KINGMETAL Origin Chinese Main Port Production Capacity 1000 Tons / Month

Product Description

ASTM B622 Hastelloy C22 seamless pipe

Alloy C22 Pipe Specification	ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619
Hastelloy C22 Seamless Pipe size	4 to 219mm W. T.: 0.5 to 20mm
Alloy C22 Seamless Tube Size	3.35 mm OD To 101.6 mm OD
Hastelloy C22 Welded Pipe size	5.0 mm - 1219.2 mm
C22 Welded Tube Size	6.35 mm OD To 152 mm OD
C22 Pipe Schedule	SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

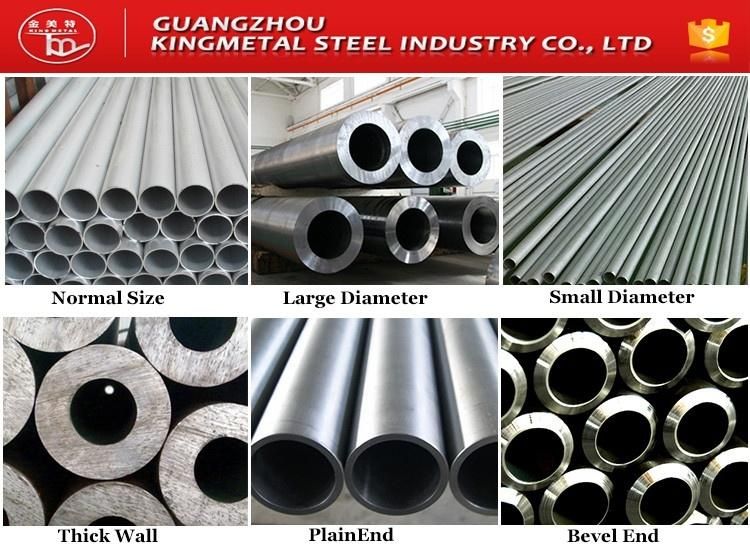

Hastelloy Pipe & Tube Form	Round, Square, Hollow, Rectangular, Hydraulic, Straight Pipes or 'U' bent Tubes, Hollow, LSAW Tubes Etc.
C22 Hastelloy Alloy Pipe & Tube End	Plain End, Beveled End, Treaded.
Hastelloy C22 Pipe Length	Single Random, Double Random & Cut Length.
Origin	China
Marking	All Hastelloy Pipes & Tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer's request.)
Hastelloy Pipe Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Test	Chemical Analysis - Spectro Analysis Hardness Test Intergranular Corrosion (IGC) Test Pitting Resistance Test Flattening Test Flaring Test Mechanical Testing Such as Tensile of Area Positive Material Identification - PMI Testing Micro and MacroTest
Hastelloy pipe Specialized in	Large Diameter Alloy C22 Pipe
Hastelloy alloy C-22 Standard	ASTM B619, ASTM B622 / ASME SB619, ASME SB622, ASTM B 622/B 829 & ASME SB 622/SB 829 (Seamless Tube), ASTM B 626/B 751 & ASME SB 626/SB 751 (Welded Tube), ASTM B 619/B 775 & ASME SB 619/SB 775 (Welded Pipe), ISO 6207 (Seamless Tube), DIN 17751, VdTÜV 400/12.98
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Hastelloy C22 tubing wall thickness	0.020" -0.220", (special wall thicknesses available)
Hastelloy C22 Tube Type	Seamless, ERW, EFW, Welded, Fabricated
Application	Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in	Hastelloy C22 Capillary Tube & Other Odd Size Hastelloy C22 Heat Exchanger & Condenser Tubes
Test Certificate	suppliers Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection



What are the characteristics of Hastelloy C22?

• Resistant to pitting, crevice corrosion and stress corrosion cracking

• Outstanding resistance to both reducing and oxidizing media

• Excellent resistance to oxidizing aqueous media

• Exceptional resistance to a wide variety of chemical process environments including strong oxidizers such as ferric acids, acetic anhydride, and seawater and brine solutions

• Resists the formation of grain-boundary precipitates in the weld heat-affected zone

• Excellent weldability



Chemical Composition(%)

C	Cr	Co	Fe	Mn	Mo	Ni	P
.010 max	20-22.5	2.5 max	2.0-6.0	.50 max	12.5-14.5	Balance	.02 max
Si	S	W	V
.08 max	.02 max	2.5-3.5	.35 max



In what applications is Hastelloy C22 used?

• Pharmaceutical industries use alloy C-22 fittings and tubing to avoid contamination caused by corrosion related failures

• Cellophane manufacturing

• Chlorination systems

• Pesticide production

• Incineration scrubber systems

• Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing

• Waste water processing



Fabrication of Hastelloy C-22

Although ductile enough to be formed by cold working, intermediate annealing may be necessary due to work hardening. Forging should be performed between 1750-2050°F followed by rapid cooling. Annealing can be performed at a temperature range between 2020-2150°F followed by a rapid quench. Cooling at an accelerated rate avoids the formation of detrimental phases which form between 1400-1800°F. Welding can be done by gas tungsten-arc, gas metal-arc and shielded metal-arc processes.



ASTM Specifications

Pipe Smls	Pipe Welded	Tube Smls	Tube Welded	Sheet/Plate	Bar	Forging	Fitting
B622	B619	B622	B626	B575	B574	B564	B366

Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material

Product Form	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness (HRb)
Plate (.25"-1.75")	112	53	62	89
Sheet (.038"-.15")	122	63	54	93
Bar (.50"-5.50")	115	55	60	89
