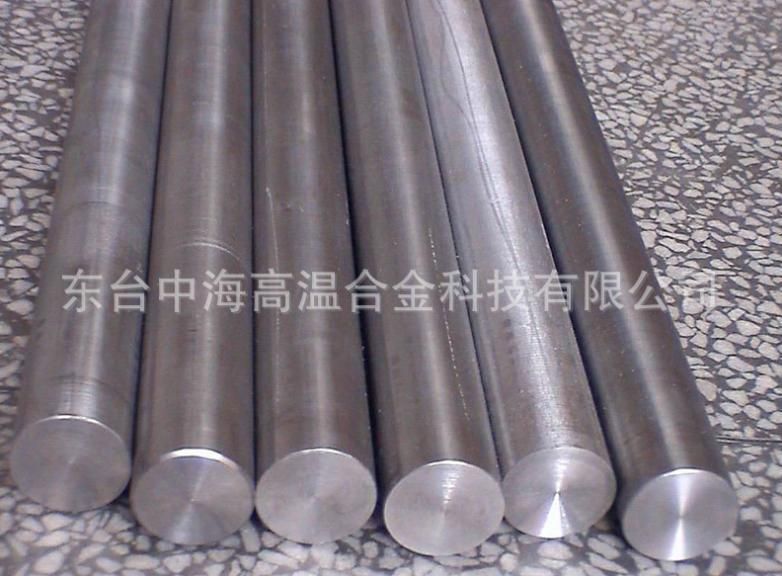

Superalloy 75 105 115 Nimonic 80A 90 Round Bar
Dongtai Zhonghai Super Alloy Co., Ltd.- Type：Round
- Standard：AISI, ASTM, DIN, JIS, GB, BS, ASTM,JIS,DIN,GB
- Composition：Nickel Alloy
- Technique：Hot Rolled
- Shape：Bar
- Surface Treatment：Bright,Black
Base Info
- Model NO.：nimonic
- Special Use：Mold Steel
- Application：Industry,etc
- Density：8.37g,cm3
- Place of Origin：Jiangsu, China
- Apply：High Temperature Hot Forging Parts
- Powder or Not：Not Powder
- Surface：Bright,Black
- Model Name：Nimonic 75 80A 90
- MOQ：100kg
- Delivery Time：7-30 Days
- Package：Standard Seaworthy Package
- Market：Middleeast, Asia, Africa,Europe
- Shape Bar：Round,Forging,Ring,Coil,Square,Hexangular
- Size：Regular,Customized Size
- Quality：Inspection
- Ultimate Strength：Standard
- Stand：ASTM,ASME,JIS,AMS,SAE,DIN,NF,Toct,Ds,Dtd,GB
- Transport Package：Woven Bag ,Wooden Crate or as Client′s Request
- Specification：10-1000mm
- Trademark：ZHALLOY
- Origin：Jiangsu, China
- HS Code：75051200
- Production Capacity：400tons, Month
Description
Physical propertyGrade Density Melting Point Nimonic 75 8.4 1374-1420ºC
UNS N06075 Nimonic 75 Alloy Steel Round Bar For Furnace Structural
What are the characteristics of Nimonic 75 ?
Machinability:
The conventional machining techniques used on iron alloys may be used for this alloy. This alloy work-hardens during machining.
Welding:
NIMONIC alloy 75 can be welded using common techniques, using a matching filler metal. A prerequisite for welding is that the metal should be annealed. Manual metal arc welding, tungsten inert gas welding and metal inert gas welding suit the alloy.
Hot working :
NIMONIC alloy 75 can be hot worked at temperature ranges of 1220-950°C (2230-1740°F).
Forging:
NIMONIC alloy 75 can be hot forged at temperatures in the range of 982-1204°C (1800-2200°F).
Cold working:
Cold working may be done on the alloy.
Annealing:
NIMONIC alloy 75 should be annealed at 1051°C (1925°F) and air cooled.
In what applications is Nimonic Alloy 75 used?
Our service
3.After-sales service.
Dongtai Zhongahi Super alloy Co., Ltd, As an integrated supplier of special steel for the global market, we've earned a high reputation in special steel industry through out the world We have provided over 1,000 customers from more than 60 countries with our high-quality stainless steel nickel alloy products,as well as professional service. Our business has grown and developed from traditional industries to other new tech fields like oil and petrochemical, new energy, bio logical medicine, electronic communications, mechanical engineering,special shipping, rail transportation,aviation and aerospace.
We have built a long term relationship with world famous manufacturers such as OUTOKUMPU,SMC, ATI, Haynes Nippon Yakin and KOBELCO,TISCO,BAOSTEEL. With the rapid development of international business, we are taking the responsibilities to be NO.1 brand of nickelalloy and special steel products, and keep ambitious and forward to serve more worldwide clients.

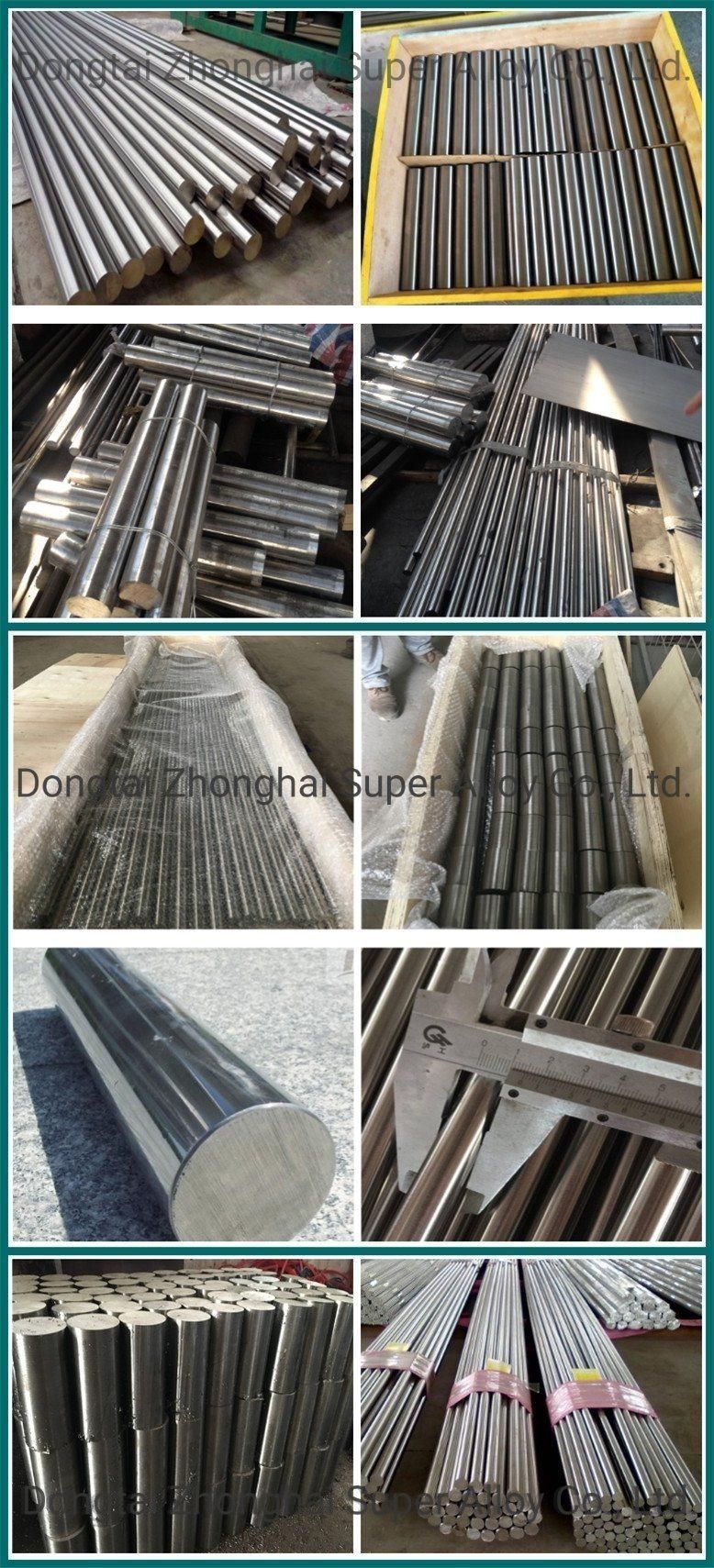

Factory production showing

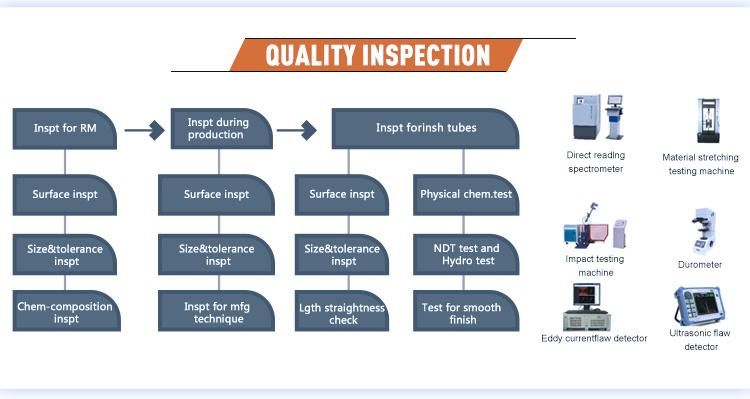

QUALITY INSPECTION
SHIPPING & PACKAGING
APPLICATION

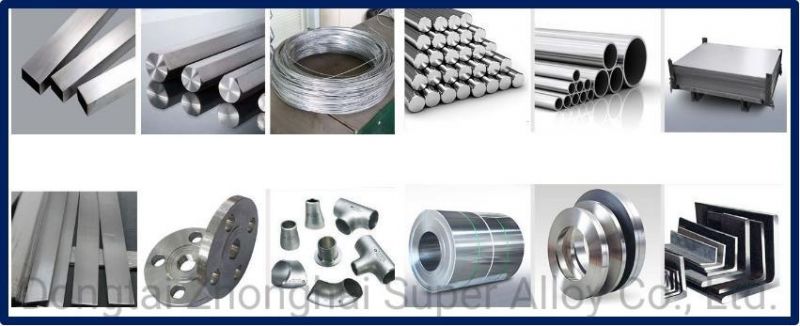

More products:
FAQ
Q:What kind of work does your company do?
A:Our company is a professional manufacturer.
We mainly produces Nickel alloy &stainless steel & super alloy plate/pipe/coil/round bars/flange/fitting
Q:What are the advantages of your company?
A:
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q:What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance based on BL copy or LC at sight.
If you have another question, please contact us as below
Q:What about your price?
A:Our price is very competitive because we are a factory.
Pls feel free to contact us if you are interested in our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality
assurance.Usually the delivery time is within5 days after we received your deposit.
MARKET DISTRIBUTION
UNS N06075 Nimonic 75 Alloy Steel Round Bar For Furnace Structural
NIMONIC alloys are made up of nickel and chromium. These alloys are characterised by their high-temperature low-creep and high performance. Additives like titanium and aluminium are used for enhancing the strength of the alloy. The NIMONIC alloy was first developed during the 1940s in England. NIMONIC alloys that are available commercially are NIMONIC 75. NIMONIC 90, NIMONIC 100, NIMONIC 80A, 81, 86, NIMONIC 90, NIMONIC PE11 and 16. The NIMONIC alloy 75 is an 80/20 nickel-chromium alloy containing titanium and carbon as additives. This alloy was first introduced for use as turbine blades during the 1940s. It is readily fabricated and welded. This alloy exhibits good corrosion resistance, mechanical properties and heat resistance. Some of the standard forms in which this alloy is available are extruded section, hexagon flats, pipe, plate, strip and wire.
NIMONIC alloy 75 (UNS N06075/W.Nr. 2.4951 & 2.4630) is an 80/20 nickel-chromium alloy with controlled additions of titanium and carbon. First introduced in the 1940s for turbine blades in the prototype Whittle jet engines, it is now mostly used for sheet applications calling for oxidation and scaling resistance coupled with medium strength at high operating temperatures. It is still used in gas turbine engineering and also for industrial thermal processing, furnace components and heat-treatment equipment. It is readily fabricated and welded.What are the characteristics of Nimonic 75 ?
Machinability:
The conventional machining techniques used on iron alloys may be used for this alloy. This alloy work-hardens during machining.
Welding:
NIMONIC alloy 75 can be welded using common techniques, using a matching filler metal. A prerequisite for welding is that the metal should be annealed. Manual metal arc welding, tungsten inert gas welding and metal inert gas welding suit the alloy.
Hot working :
NIMONIC alloy 75 can be hot worked at temperature ranges of 1220-950°C (2230-1740°F).
Forging:
NIMONIC alloy 75 can be hot forged at temperatures in the range of 982-1204°C (1800-2200°F).
Cold working:
Cold working may be done on the alloy.
Annealing:
NIMONIC alloy 75 should be annealed at 1051°C (1925°F) and air cooled.
In what applications is Nimonic Alloy 75 used?
- Aerospace fasteners
- Gas turbine engineering
- Industrial furnace structural parts
- Heat treatment equipments
- Nuclear engineering.
Our service
1.High quality service to solve problems for you.
2.Track goods production and delivery.3.After-sales service.
Our factory
Dongtai Zhongahi Super alloy Co., Ltd, As an integrated supplier of special steel for the global market, we've earned a high reputation in special steel industry through out the world We have provided over 1,000 customers from more than 60 countries with our high-quality stainless steel nickel alloy products,as well as professional service. Our business has grown and developed from traditional industries to other new tech fields like oil and petrochemical, new energy, bio logical medicine, electronic communications, mechanical engineering,special shipping, rail transportation,aviation and aerospace.
We have built a long term relationship with world famous manufacturers such as OUTOKUMPU,SMC, ATI, Haynes Nippon Yakin and KOBELCO,TISCO,BAOSTEEL. With the rapid development of international business, we are taking the responsibilities to be NO.1 brand of nickelalloy and special steel products, and keep ambitious and forward to serve more worldwide clients.

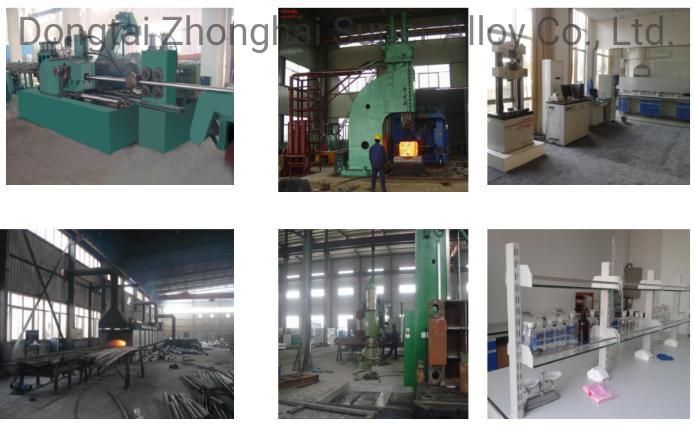

Factory production showing
