• Model NO.：9.5-259MM
• 201ni%：>1%
• 304ni%：>8%
• 316ni%：>10%
• 304,316 C%：<0.08%
• 304L,316L C%：<0.03%
• Thickness Tolerance：-0.05,+0.05mm
• Diameter Tolerance：-0.02,+0.02mm
• Round Pipe Size：9-259mm
• Square Pipe Size：10*10-150*150mm
• Rectangular Pipe Size：10*20-100*200mm
• Transport Package：Seaworthy Packing
• Specification：9.5-259mm
• Origin：China
• HS Code：730640000
• Production Capacity：1000tons,Month

Basic Info.

Model NO. 9.5-259MM 201ni% >1% 304ni% >8% 316ni% >10% 304,316 C% <0.08% 304L,316L C% <0.03% Thickness Tolerance -0.05/+0.05mm Diameter Tolerance -0.02/+0.02mm Round Pipe Size 9-259mm Square Pipe Size 10*10-150*150mm Rectangular Pipe Size 10*20-100*200mm Transport Package Seaworthy Packing Specification 9.5-259mm Origin China HS Code 730640000 Production Capacity 1000tons/Month

Product Description

Stainless steel round pipe
1. GRAD: SUS 201, 304, 304L, 316, 316L.
2. Lenght: 6M ( Client's request lengths compliable )
3. Surface Finish
A. 400 Grit B. Mirror finish C. Drawing D. Matt
5. Advantages:
A. Special designed, beautiful and durable
B. Easy fabricating
C. Increase the shock effect, to ensure the safety of the glass.

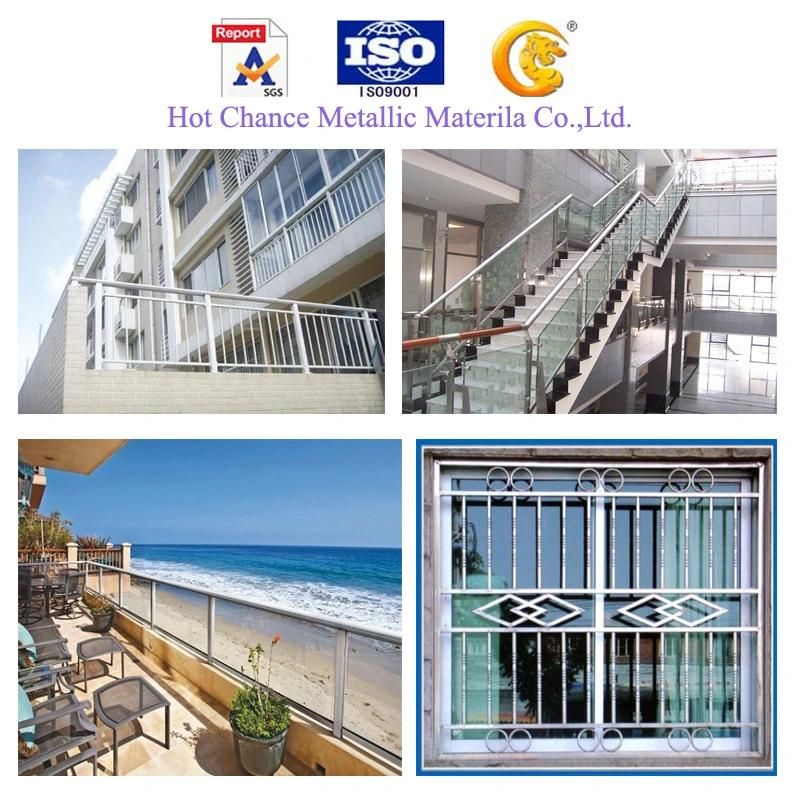

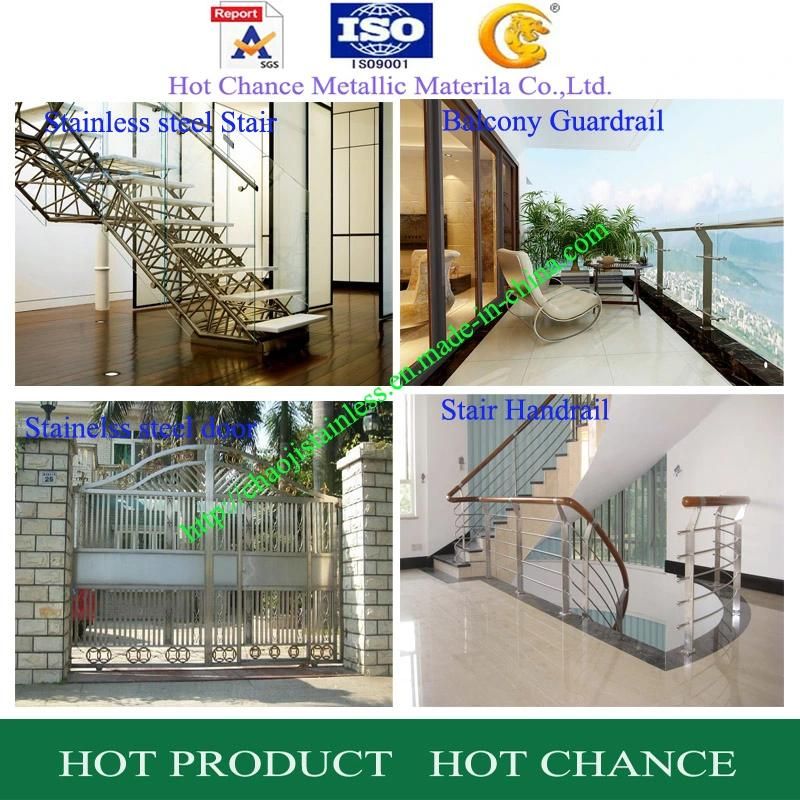

6. Product uses: Airports, subway, railway stations, shopping malls, buildings, hotels, glass handrails and other decorative works.



Usually specification of stainless steel pipe
Round pipe& tube: Φ 9.5 Φ 10 Φ 12.7 Φ 15.9 Φ 19.1 Φ 22.2 Φ 25.4 Φ 31.8 Φ 38.1 Φ 42.4 Φ 50.8 Φ 63.5 Φ 76.2 Φ 88.9 Φ 101.6 Φ 108 Φ 114.3 Φ 127 Φ 133 Φ 141 Φ 159 Φ 168 Φ 219, thickness rang: 0.5~5.0mm;
Square tube & pipe: 10× 10 12× 12 15× 15 19× 19 20× 20 22× 22 25× 25 30× 30 35× 35 38× 38 40× 40 50× 50 60× 60 70× 70 80× 80 90× 90 100× 100 120× 120 125× 125 150× 150
Thickness rang: 0.4~5.0mm
Rectangular tube& pipe:
20x1030x1025x1025x1330x1550x1550x2030x2040x1040x2050x10
60x1038x2550x2550x4060x2060x3060x4075x1075x4580x6095x45
100x50150x50120x60120x80

Product Name	Diameter Specification(mm)	thickness(mm)	Note
Round pipe	9.53	0.5-1.1
Round pipe	10	0.5-1.1
Round pipe	12	0.5-1.1
Round pipe	12.7	0.5-1.1
Round pipe	14	0.5-1.5
Round pipe	15.9	0.5-1.5
Round pipe	19	0.5-1.5
Round pipe	22.2	0.5-1.5
Round pipe	25.4	0.5-1.9
Round pipe	31.8	1.0-2.0
Round pipe	38.1	1.0-2.0
Round pipe	42.4	1.0-2.0
Round pipe	48.3	1.0-2.0
Round pipe	50.8	1.0-2.5
Round pipe	57	1.0-2.5
Round pipe	60.3	1.0-2.5
Round pipe	63.5	1.0-3.0
Round pipe	76.2	1.0-3.0
Round pipe	88.9	1.0-3.0
Round pipe	101.6	1.0-3.0
Round pipe	114	1.0-3.0
Round pipe	127	1.0-3.0
Round pipe	133	1.0-3.0
Round pipe	159	1.0-3.0
Round pipe	168	1.0-3.0
Round pipe	219	1.0-3.0
Product Name	Specification(mm)	thickness(mm)	Note
square  pipe	10×10	0.5-1.1
square  pipe	12.7×12.7	0.5-1.1
square  pipe	15×15	0.5-1.1
square  pipe	19×19	0.5-1.5
square  pipe	20×20	0.5-1.5
square  pipe	22×22	0.5-1.5
square  pipe	25×25	0.5-1.9
square  pipe	30×30	1.0-2.0
square  pipe	38×38	1.0-2.5
square  pipe	40×40	1.0-2.5
square  pipe	50×50	1.0-2.5
square  pipe	60×60	1.0-2.5
square  pipe	75×75	1.0-3.0
square  pipe	80×80	1.0-3.0
square  pipe	100×100	1.0-3.0
square  pipe	150×150	1.0-3.0
Product Name	Specification(mm)	thickness(mm)	Note
rectangularpipe	10×20	0.5-1.1
rectangularpipe	10×30	0.5-1.1
rectangularpipe	10×40	0.5-1.1
rectangularpipe	10×50	0.5-1.1
rectangularpipe	10×60	0.5-1.5
rectangularpipe	10×75	0.5-1.5
rectangularpipe	13×25	0.5-1.5
rectangularpipe	15×30	0.5-1.5
rectangularpipe	20×40	0.5-1.9
rectangularpipe	25×38	1.0-2.0
rectangularpipe	25×50	1.0-2.0
rectangularpipe	30×60	1.0-2.5
rectangularpipe	40×60	1.0-2.5
rectangularpipe	40×80	1.0-2.5
rectangularpipe	45×75	1.0-3.0
rectangularpipe	45×95	1.0-3.0
rectangularpipe	50×100	1.0-3.0
rectangularpipe	60×120	1.0-3.0
