PPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing Sheet

Shandong Zhongyi Steel Co., Ltd.
  • Transport Package:Lined with a Waterproof Inner Packaging.
  • Trademark:ZHONGYI
  • Origin:China

Base Info

  • HS Code:3920209090
  • Production Capacity:30000 Tons,Month

Description

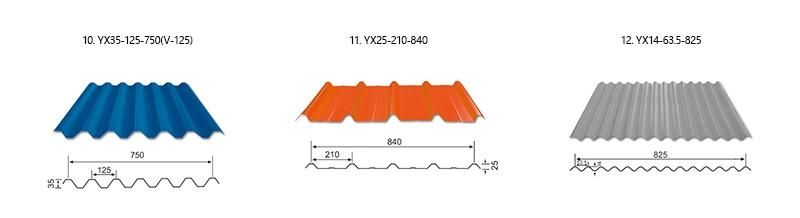

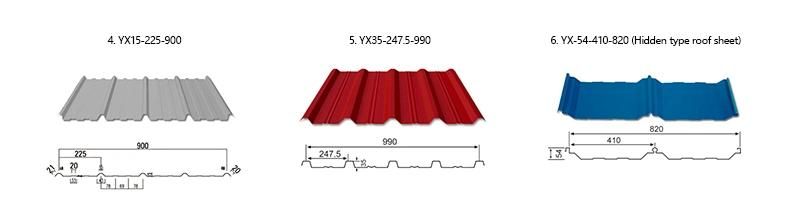

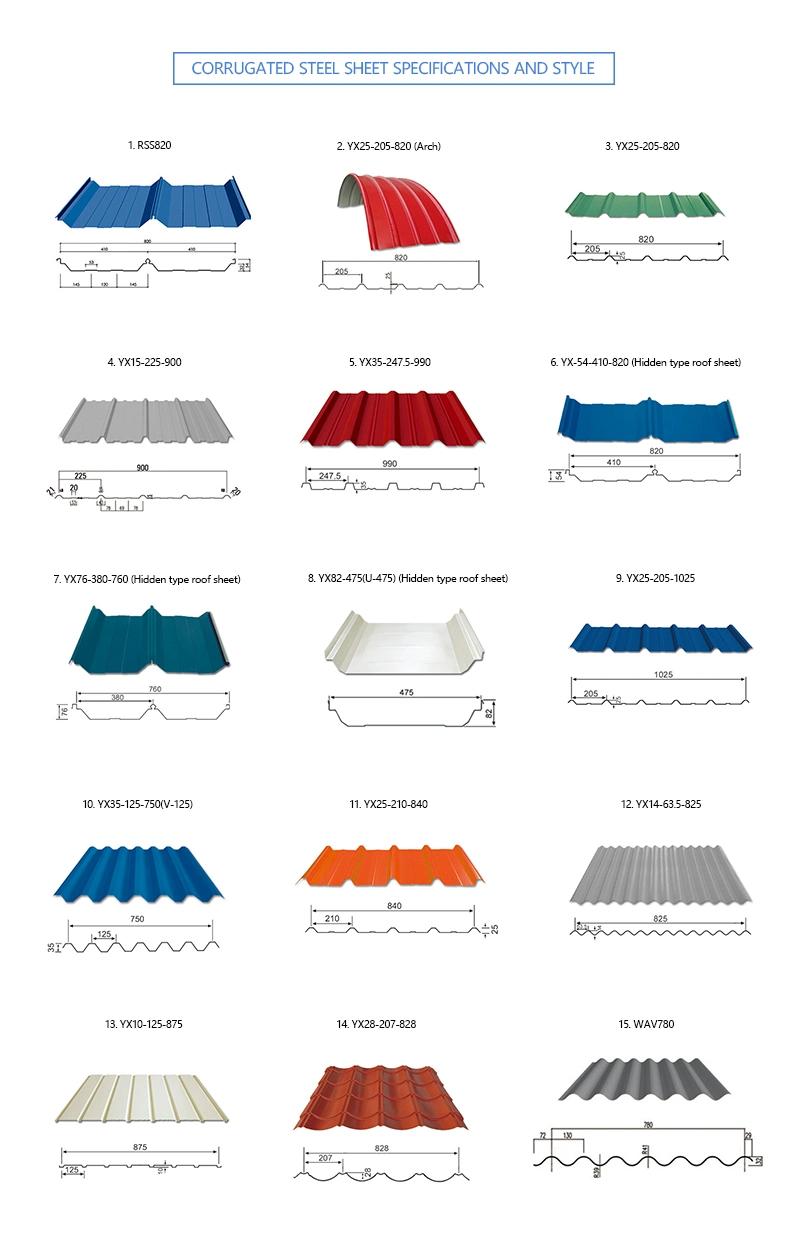

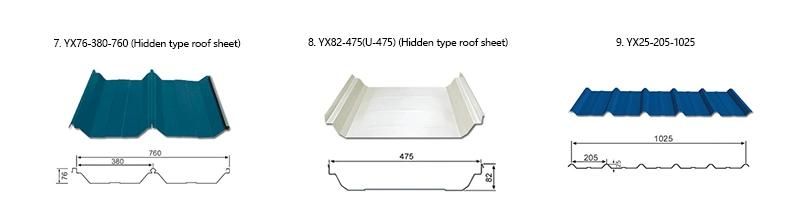

ModelRSS820YX25-205-820 (Arch)YX25-205-820Effective Coverage Width (mm)820820820Expanded Width (mm)100010001000Plate Thickness (mm)0.5 - 0.60.5 - 0.60.5 - 0.6Section Moment of Inertia (cm4/m)22.6 - 27.144.38 - 5.324.38 - 5.32Section Resistance Moment (cm/3m)15.06 - 187.81 - 8.57.81 - 8.5PPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetModelYX15-225-900YX35-247.5-990YX-54-410-820Effective Coverage Width (mm)900990820Expanded Width (mm)100012001000Plate Thickness (mm)0.5 - 0.60.5 - 0.60.5 - 0.6Section Moment of Inertia (cm4/m)1.23 - 1.489.6 - 11.5622.6 - 27.14Section Resistance Moment (cm/3m)3.85 - 4.558.9 - 10.615.06 - 18PPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetModelYX35-125-750(V-125)YX25-210-840YX14-63.5-825Effective Coverage Width (mm)750840825Expanded Width (mm)100010001000Plate Thickness (mm)0.5 - 0.60.5 - 0.60.5 - 0.6Section Moment of Inertia (cm4/m)10.61 - 12.744.44 - 5.382.45 - 2.94Section Resistance Moment (cm/3m)6.12 - 7.336.98 - 8.312.57 - 3.07PPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetModelYX35-125-750(V-125)YX25-210-840YX14-63.5-825Effective Coverage Width (mm)750840825Expanded Width (mm)100010001000Plate Thickness (mm)0.5 - 0.60.5 - 0.60.5 - 0.6Section Moment of Inertia (cm4/m)10.61 - 12.744.44 - 5.382.45 - 2.94Section Resistance Moment (cm/3m)6.12 - 7.336.98 - 8.312.57 - 3.07PPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetModelYX10-125-875YX28-207-828WAV780Effective Coverage Width (mm)875828780Expanded Width (mm)100010001000Plate Thickness (mm)0.5 - 0.60.5 - 0.60.5 - 0.6Section Moment of Inertia (cm4/m)0.84 - 1.015.51 - 6.187.2 - 8.64Section Resistance Moment (cm/3m)3.32 - 3.913.93 - 4.74.64 - 5.55PPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetPPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetPPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetPPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetPPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing SheetPPGI Colour Coating Corrugated Steel Roofing Sheet Galvalume Roofing Sheet Coated Color Painted PPGI Building Material Price Galvanized Steel Roofing Sheet
Lowest first cost. Galvanizing is lower in first cost than many other commonly specified protective coatings for steel. (The application cost of labour intensive coatings such as painting has risen far more than the cost of factory operations such as galvanizing.)
Less maintenance/Lowest long term cost. Even in cases where the initial cost of galvanizing is higher than alternative coatings, galvanizing is almost invariably cheapest in the long term (because it lasts longer and needs less maintenance). And, maintenance causes problems and adds to costs when structures are located in remote areas, and when plant shutdown or disruption to production is involved.
 Long life. The life expectancy of galvanized coatings on typical structural members is far in excess of 50 years in most rural environments, and 20 to 25 years plus, even in severe urban and coastal exposure.
Reliability. Galvanizing is carried out to Australian / New Zealand Standard 4680, and standard, minimum coating thicknesses are applied. Coating life and performance are reliable and predictable.
Toughest coating. A galvanized coating has a unique metallurgical structure which gives outstanding resistance to mechanical damage in transport, erection and service.
 Automatic protection for damaged areas. Galvanized coatings corrode preferentially to steel, providing cathodic or sacrificial protection to small areas of steel exposed through damage. Unlike organic coatings, small damaged areas need no touch up.
Complete protection. Every part of a galvanized article is protected, even recesses, sharp corners and inaccessible areas. No coating applied to a structure or fabrication after completion can provide the same protection.
Ease of inspection. Galvanized coatings are assessed readily by eye, and simple non-destructive thickness testing methods can be used. The galvanizing process is such that if coatings appear sound and continuous, they are sound and continuous.
Faster erection time. As galvanized steel members are received they are ready for use. No time is lost on-site in surface preparation, painting and inspection. When assembly of the structure is complete, it is immediately ready for use, or for the next construction stage.
 A full protective coating can be applied in minutes; The galvanizing process is not dependent on weather conditions
