Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo

HK JIMI STEEL CO., LTD.
  • Standard:DIN, JIS, AISI, ASTM, GB, BS
  • Technics:Forged
  • Application:Structural Steel Bar
  • Surface:Polished
  • Alloy:Alloy
  • Special Use:High-strength Steel Plate, Wear Resistant Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel

Base Info

  • Model NO.:34Cr2Ni2mo
  • Model No.:34cr2ni2mo
  • International Standard:AISI, ASTM, BS, DIN, GB, JIS
  • Shape:Plate,Flat Bar,Round Bar,Block
  • Inspection:100% Ut 1921 Step E,E~D,D
  • Customized:Yes , OEM
  • Test:SGS , Ut 100% , Element Testing
  • Hardness:28-34HRC
  • Size Range:Thickness: 10~800mm Width: 100-2200
  • Trade Terms:CIF,Fob,CFR,EXW
  • Surface&Delivery:Black,Milled,Machined
  • Product Type:Engineering Steel , Plastic Tool Steel
  • Special Purpose:Die,Cutting Steel,High Strength Steel Plate
  • Business Way:Wholesaler and Retail
  • Our Service:24 Hours Online & Prompt Reponse
  • Hscode:7228300000
  • Transport Package:Wood Brick, Wirerope, Protective Paper
  • Specification:1*20Gp, 1*40Gp
  • Trademark:ISO9000,SGS
  • Origin:China
  • HS Code:7228300000
  • Production Capacity:5000 Tons,Month

Description

34cr2ni2mo structural steel is characterized by high strength, toughness, good hardenability and stability against overheating, but it has high white spot sensitivity and temper brittleness. The weldability is poor. It needs high temperature preheating before welding and stress relief after welding. It can be used after quenching and tempering. Generally, important parts with high strength and good plasticity are made, and important parts with special performance requirements are made after nitriding treatment, such as shafts, gears, fasteners, etc.

2.Mechanical Property

Tensile strength σ B (MPA): 933 ~ 1011
Conditional yield strength σ 0.2 (MPA): 832 ~ 899
Elongation δ 5 (%): 19-20
Reduction rate of area: 53-64%
Impact energy Akv (J): 117
Impact toughness value α Ku (J / cm2): 144-172
Hardness: 274-303hb
Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo

3.Application

Molds for corrosive plastic materials such as PVC, recycled polymers etc., molds for chemically aggressive plastics and plastics containing abrasive fillers, mold inserts, dies and gauges for PVC extrusions, screws and barrels for extruders, molds for automotive, food, medical and optical industry such as spectacles, compact discs, lenses.
Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo

4.Our Service

A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc
C. Ultrasonic testing and hardness testing

Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2moHot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo

5.Feature

1.Vacuum degassing refining processing steel purity, suitable for polishing or etch processing plastic mold.
2. In pre-harden state delivery, no need for heat treatment can be directly used for mold processing, shorten the construction.
3. After heat treatment machining and polishing performance is good, the nitriding treatment, can be suitable for chrome plating surface treatment, such as material is the qualitative hardness is uniform (400mm thick), good toughness and good machining performance.
4.Good hardness uniformity and polishing property, good machining properties.
5.Good integral mechanical performance under high temperatures.
6.Good heat-resistance and fatigue-resistance.

7. Pre-hardened to HRC30-36 can be directly used for mold processing, shorten the construction period.

Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo

6. About us

HK JIMI STEEL Was established in 2012, located in the Shunde District of Guangdong Province, It is an import and export trading company mainly engaged in advanced special steel, die steel, alloy steel, and steel processing general machinery and equipment. The company adheres to the concept of "high quality, high requirements and good faith",

Cooperating with more than 20 famous steel mills in China, rich in spot stock of products.

Our company has a variety of processing equipment and all kinds of inspection and testing equipment, such as horizontal sawing machine, vertical sawing machine, milling machine, bilateral milling machine, precision milling machine, plane grinder and so on. The products with short producing time, excellent quality and high precision can provide a high-quality product choice for the vast number of customers at home and abroad.

Our customer group spread all over the domestic provinces and cities, abroad including Europe, the United States, Australia, the Middle East, Southeast Asia and other more than 20 countries and regions, along with over 100 long-term stable cooperation customers...Choosing Xingxiong will bring you a better experience.



PLASTIC MOULD STEEL: 1.2311, 1.2312, 1.2738, P20, 1.2083, 1.2316, NAK80, P40, 1.2738HH

HOT WORK MOULD STEEL: 1.2344, SKD61, H13, H11, FDAC, 8407

COLD WORL MOULD STEEL: SKD11, D3, SKS3, 1.2080, 1.2379, CR12MOV, O1, D2

STRUCTURAL ALLOY STEEL: 4140, 20CR, 40Cr, 35CrMo, 42CrMo, 38CrmoAi, SCM440, SCM420, 1.7225

CARBON STEEL &: Q235, Gcr15, S45C, S50C, S55C

CNC surface grinding machine, NC side boring machine, Band saw, CNC double head machine, Vertical Band saw, CNC milling machine, Double alloy saw blade, wireless remote control crane, Magnetic chuc

Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo

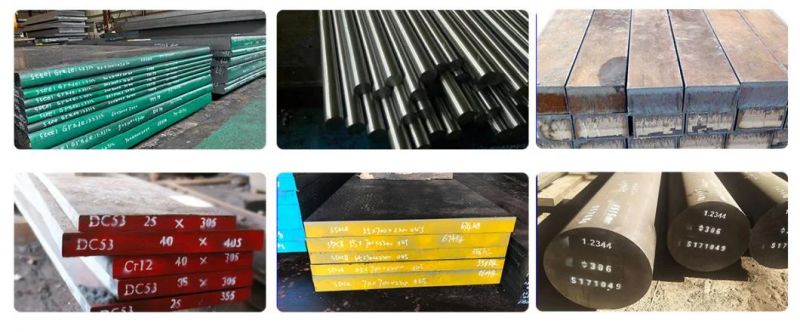

7. Stock


High-quality stock for various steel flat bar and round bar.
Alloy steel / Cold work steel / Hot work steel / Plastic mold steel and Stainless

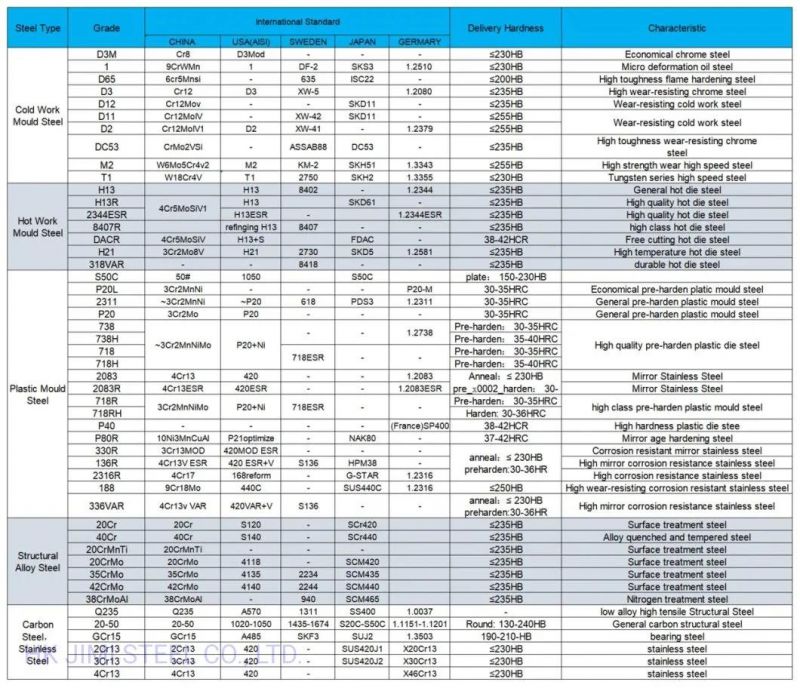

For more tool and die steel please check the list:
Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo
8.Delivery Time

1) For abundant stock, 7-15 days.
2) For customized products, 15-30 days.

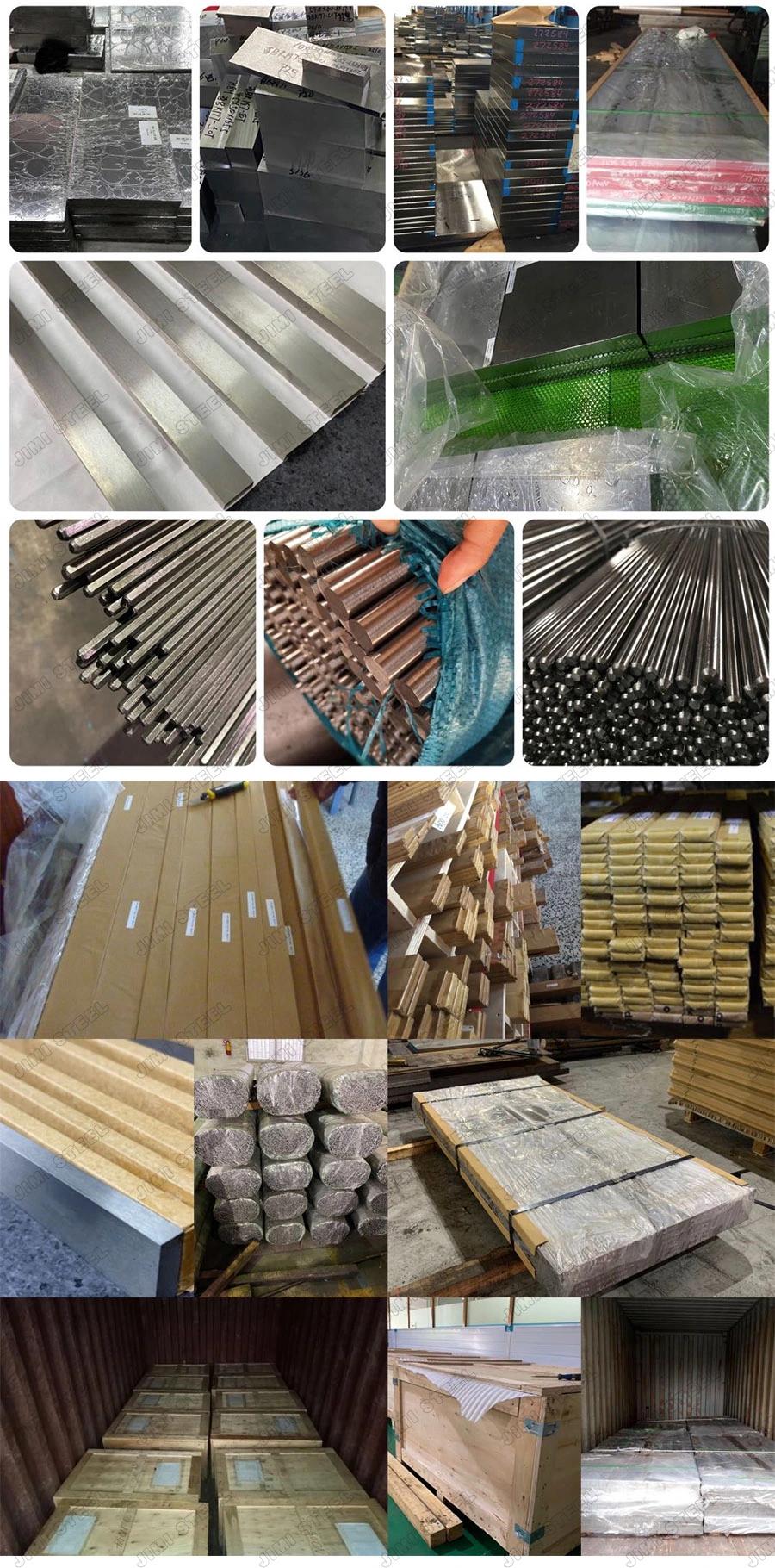

Loading Details:
Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo
9.FAQ

Q1: What do you do for the control of the quality?

A1:  Before loading into the container, our products will all be inspected by ultrasonic inspection. Quality Grade conforms to SEP 1921-84 E/e, D/d, C/c as per customer's request.

Q2:: What are your hot-selling products?

A2: D2/1.2379, H13/1.2344, CR12MOV, DC53, CR8, abundant stock for both plates and rounds. Competitive prices and short lead-time.

Q3: Can we visit your company and factory?
A3: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.

Q4: Are you a manufacturer or merely a trader?
A4: We are a group of companies and owned manufacturer bases and trading companies. We specialized in plastic mold steel, hot work mold steel, cold work mold steel, alloy steel for mechanical, high-speed steel, etc. All materials are of high quality and competitive price.


10.Hot Sell Product
Hot Rolled Alloy Structural Steel Round Bar 34cr2ni2mo

Plastic  Mold steel: P20 / NAK80 / 2083R
Cold Work Steel: DC53 / Cr12 / M2 / T1
Hot Worl Steel: H13 / H13R / 1.2344
Alloy Steel: 20Cr / 4140 / SCM440

Carbon steel Stainless: GCr15 / 304 / SUJ420
