Hot DIP Galvanized Rigid Pipe Conduit with UL Approval

Weifang East Pipe Industry Technical Co., Ltd.

Type：Welded
Technique：ERW
Material：Carbon Steel
Surface Treatment：Hot DIP Galvanized
Usage：Pipeline Transport, Machinery Industry, Mining, Construction & Decoration, Wire Pulling
Section Shape：Round

Base Info

Model NO.：1,2"-6"
Transport Package：Bundles
Specification：1,2"-6"
Trademark：east conduit
Origin：China

Description

Nominal Wall Thickness
U.S.	Metric	Lbs	Kg	In.	mm	In.	mm
1/2"	16	82	37.2	0.84	21.3	0.104	2.6
3/4"	21	109	49.44	1.05	26.7	0.107	2.7
1"	27	161	73.03	1.315	33.4	0.126	3.2
1-1/4"	35	218	98.88	1.66	42.2	0.133	3.4
1-1/2"	41	263	119.3	1.9	48.3	0.138	3.5
2"	53	350	158.76	2.375	60.3	0.146	3.7
2-1/2"	63	559	253.56	2.875	73	0.193	4.9
3"	78	727	329.77	3.5	88.9	0.205	5.2
3-1/2"	91	880	399.17	4	101.6	0.215	5.5
4"	103	1030	467.21	4.5	114.3	0.225	5.7
5"	129	1400	635.04	5.563	141.3	0.245	6.2
6"	155	1840	834.62	6.625	168.3	0.266	6.8

Applicable tolerances:

Length: 10Ft (3.05m) ± ¼" (±6.35mm).

Outside Diameter: ½"-2" ±0.015" (±0.38mm); 2½"-4" ±0.025" (±0.64mm); 5"-6" ± 1%

CONTACT INFORMATION:

TEL:+86-536-8187103

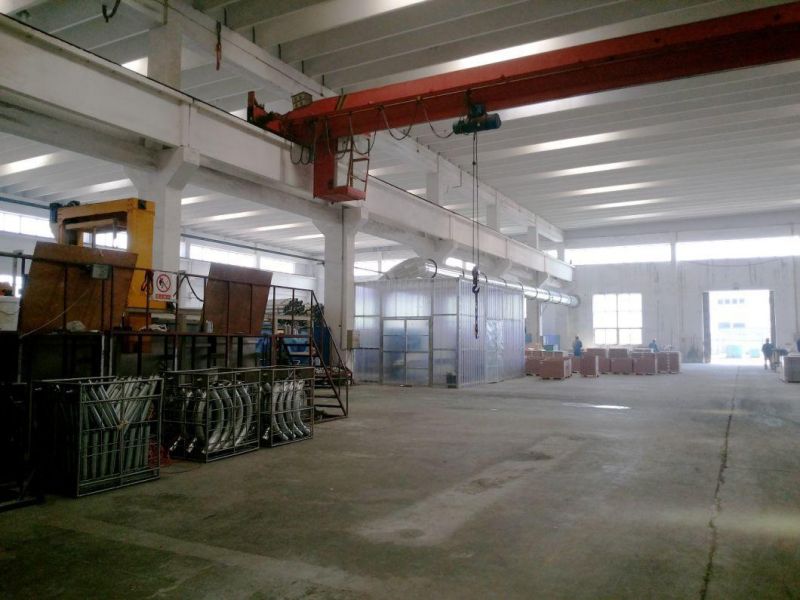

FACTORY AND LABORATORY

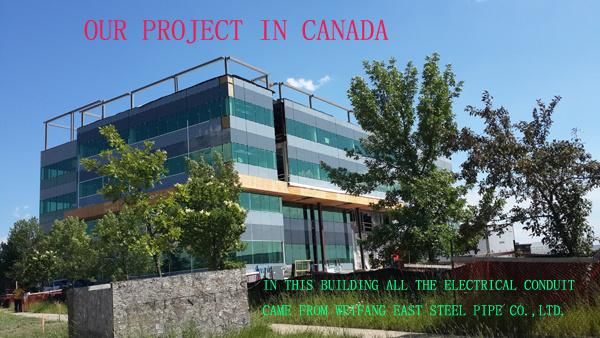

PRODUCTS IN THE WORLD
