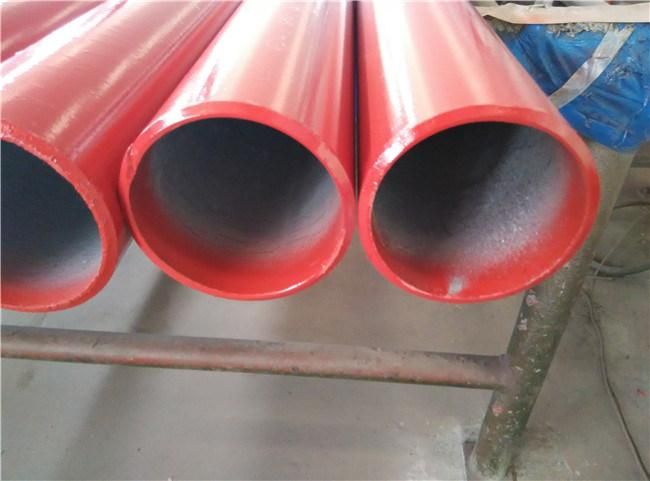

UL FM Fire Sprinkler Steel Pipe
Weifang East Pipe Industry Technical Co., Ltd.- Type：Welded
- Technique：ERW
- Material：Carbon Steel
- Surface Treatment：Painted, Galvanized...
- Usage：Pipeline Transport, Boiler Pipe, Hydraulic,Automobile Pipe, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
- Section Shape：Round
Base Info
- Model NO.：C-001
- Coating Thickness：Paint Thickness: 20um Zinc Thickness:50-70um
- Standard：ASTM A53,A795,A135 En10255 BS1387

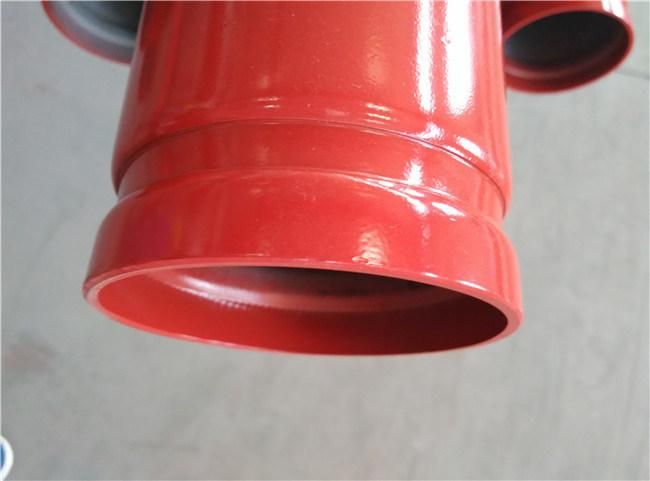

- End Finish：Groove. Thread. Bevel, Plain, Shoulder End...
- Certificates：UL FM API GOST Ce ISO JIS...
- Transport Package：Plastic Clothes and Steel Strip
- Specification：NPS: 1,2" ---12" WT: 2.11--10.31mm
- Trademark：WEIFANG EAST
- Origin：China
- HS Code：73063090
- Production Capacity：500, 000 Ton,Year
Description
NORMAL WEIGHT(mm) (INCH) (mm) (inch) (mm) (inch) (kg/mtrs) (lbs/ft) (mm) (inch) (kg/mtrs) (lbs/ft) 15 1/2'' 21.30 0.840 ---- ---- ---- ---- 2.77 0.109 1.27 0.85 20 3/4'' 26.70 1.050 2.11 0.083 1.28 0.96 2.87 0.113 1.69 1.13 25 1'' 33.40 1.315 2.77 0.109 2.09 1.41 3.38 0.133 2.50 1.68 32 1.1/4'' 42.20 1.660 2.77 0.109 2.69 1.81 3.56 0.140 3.39 2.27 40 1.1/2'' 48.30 1.900 2.77 0.109 3.11 2.09 3.68 0.145 4.05 2.72 50 2'' 60.30 2.375 2.77 0.109 3.93 2.64 3.91 0.154 5.45 3.66 65 2.1/2'' 73.00 2.875 3.05 0.120 5.26 3.53 5.16 0.203 8.64 5.80 80 3'' 88.90 3.500 3.05 0.120 6.46 4.34 5.49 0.216 11.29 7.58 90 3.1/2'' 101.60 4.000 3.05 0.120 7.41 4.98 5.74 0.226 13.58 9.12 100 4'' 114.30 4.500 3.05 0.120 8.37 5.62 6.02 0.237 16.09 10.80 125 5'' 141.30 5.563 3.40 0.134 11.58 7.78 6.55 0.258 21.79 14.63 150 6'' 168.30 6.625 3.40 0.134 13.85 9.30 7.11 0.280 28.29 18.99 200 8'' 219.10 8.625 4.78 0.188 25.26 16.96 7.04 0.277 36.82 24.72 250 10'' 273.10 10.750 4.78 0.188 31.62 21.23 7.08 0.307 51.05 34.27
