• Model NO.：monel K500
• Surface Treatment：Bright
• Transport Package：According The Clients Request
• Specification：5-300mm, Length 1500-6000mm
• Trademark：Bozhong
• Origin：China
• HS Code：7219340000
• Production Capacity：20000mt

Basic Info.

Model NO. monel K500 Surface Treatment Bright Transport Package According The Clients Request Specification 5-300mm, Length 1500-6000mm Trademark Bozhong Origin China HS Code 7219340000 Production Capacity 20000mt

Product Description

Nickel ALLOY monel K500 (2.4375/N05500)Bright Round bar

1.Product Description

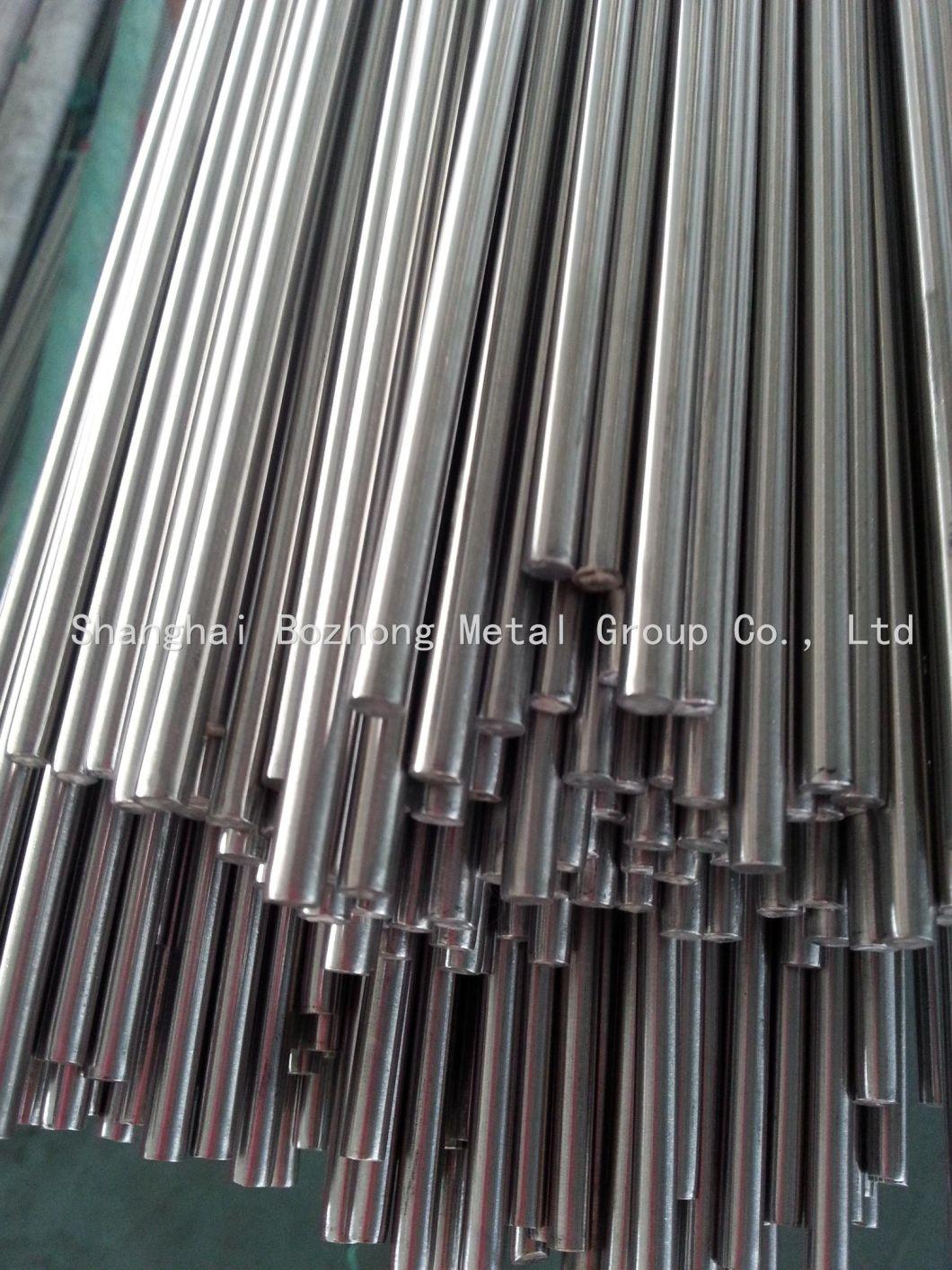

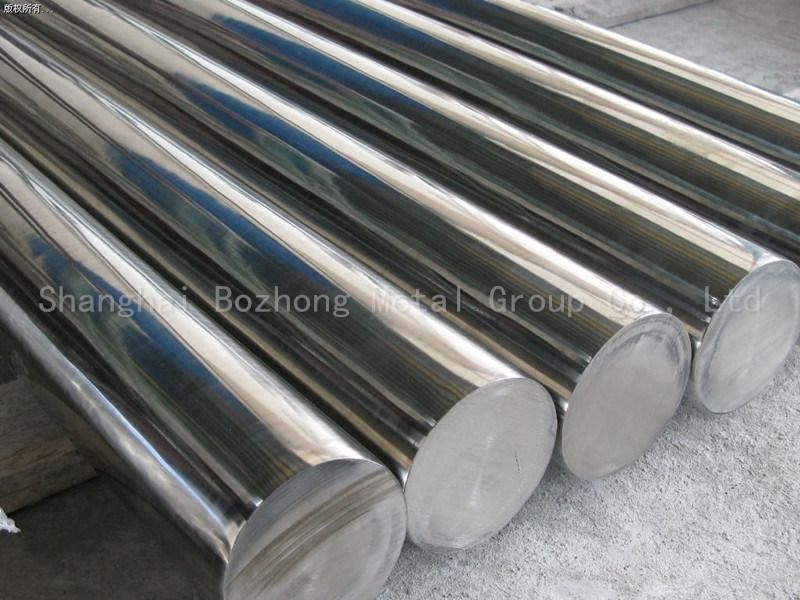

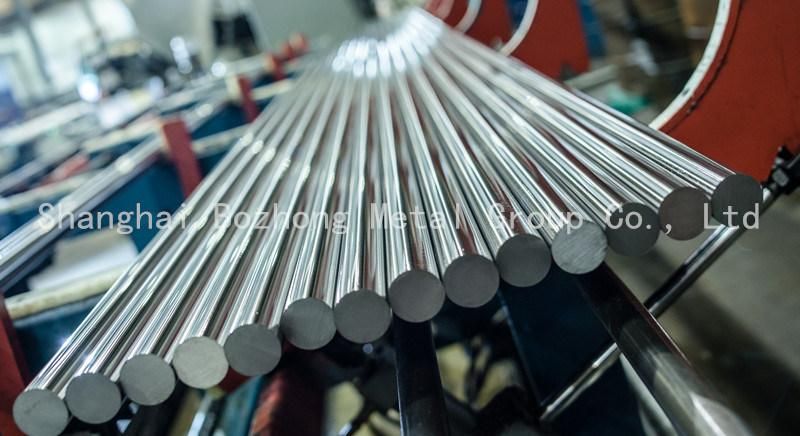

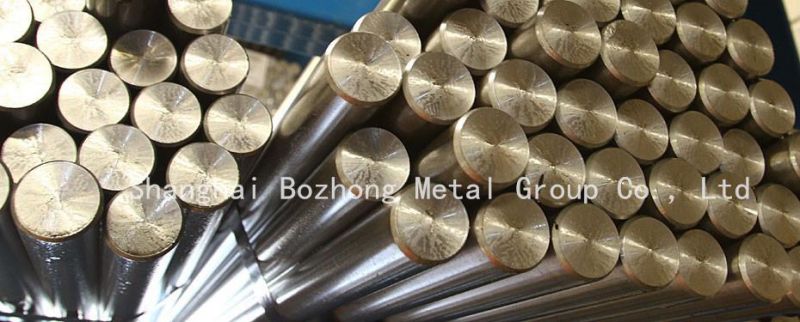

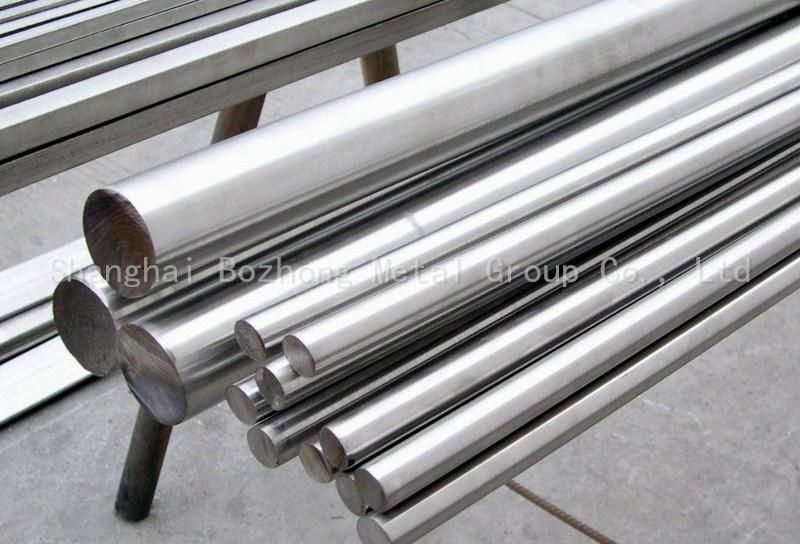

Polished Round Bar Monel Alloy K500

MONEL K500 is a age-hardenable Nickel-Copper alloy which combines the corrosion resistance of Alloy 400 with high strength corrosion fatigue and erosion resistance.
MONEL K500 is a nickel-copper alloy, precipitation hardenable through additions of aluminum and titanium. MONEL K500 retains the excellent corrosion resistant characteristics of 400 and has enhanced strength and hardness after precipitation hardening when compared with 400. Alloy K500 has approximately three (3) times the yield strength and double the tensile strength when compared with 400. MONEL K500 can be further strengthened by cold working before the precipitation hardening


the characteristics of Monel K500
.Corrosion resistance in an extensive range of marine and chemical environments. From pure water to non-oxidizing mineral acids, salts and alkalis.
. Excellent resistance to high velocity sea water
. Resistant to a sour-gas environment
. Excellent mechanical properties from sub-zero temperatures up to about 480C
. Non-magnetic alloy

Chemical Composition(%)

Ni	Cu	Al	Ti	C	Mn	Fe	S	Si
63.0-70.0	Remainder	2.30-3.15	.35-.85	.25 max	1.5 max	2.0 max	.01 max	.50 max

Physcial Property

Condition	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness
Hot-Finished/Aged	140-190	100-150	30-20	27-38 HRC
Hot Finished/Annealed	90-110	40-60	45-25	75-90 HRB
Hot Finished/Annealed/Aged	130-165	85-120	35-20	24-35 HRC
Cold-Drawn/Aged	135-185	95-160	30-15	25-41 HRC
Cold-Drawn/Annealed/Aged	130-190	85-120	30-20	24-35 HRC

Application of Monel K500
Monel K-500 alloy finds wide applications in the marine, chemical, petrochemical and shipbuilding industries. Typical applications include:

• Valve seals, pump sleeves and wear rings in marine environments - high strength and resistance to seawater
• Pump shafts for fire-fighting pumps - high strength (resulting in smaller diameter shafts) and resistance to flowing seawater
• Propeller shafts - high strength (resulting in smaller diameter shafts and thus smaller bearings) and resistance to seawater
• Fasteners e.g. bolts, used in marine atmospheres and tidal waters - resistance to chloride - containing environments
• Doctor blades and scrapers
• Towing cable armoring - high strength, non-magnetic properties and resistance to seawater
• Springs - resistance to a variety of corrosive media
• Oil well drilling equipment such as non-magnetic drill collars, valves and instrumentation sleeves - resistance to chloride-containing media and sour gas environments
• Aviation instrument components - non-magnetic properties

2. Our Service For You

Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles  for your choices.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have 8 year experience of design, manufacture and sell lingerie, we cherish every order from our honor.
 After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale choose
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.








3.FAQ
Q: What's your minimum order quantity?
A: Our minimun quantity is 500 Kg. We also can offer you samples.
Q: What's your delivery time?
A: Our normal delivery time is 7-20 days, and it depends on your quantity and items. Of course, if you need products urgently, we also will consider arranging it firstly.
Q: What's the price of your product?
A: Our prices are based on the material grade, size, quantity and physical performance etc. So if you can offer us the detailed information, then we can give you the best reasonable price. Also, we can do special size and color for customers.
Q: What's your after-sales service?
A: We have two ways to handle claims by replacement and deduction. Of course, if the materialis not good used by wrong parameter from customer, we won't be responsible.
Q: Why do you think I will want to buy from you?
A: We have advantages with 22 years of professional experiences in manufacturing & designing, advanced technology & the first-class equipment, perfect logistics management, high-quality after-sales service and competitive price.





4. Contact us

Name: Denny Cheng
Direct line: 021-67897611
Tel: +86 18605565290
Address: 518,XINZHUAN ROAD, SONGJIANG DISTRICT, SHANGHAI, CHINA 201612
Web: shanghaibozhong.en.made-in-china.com
