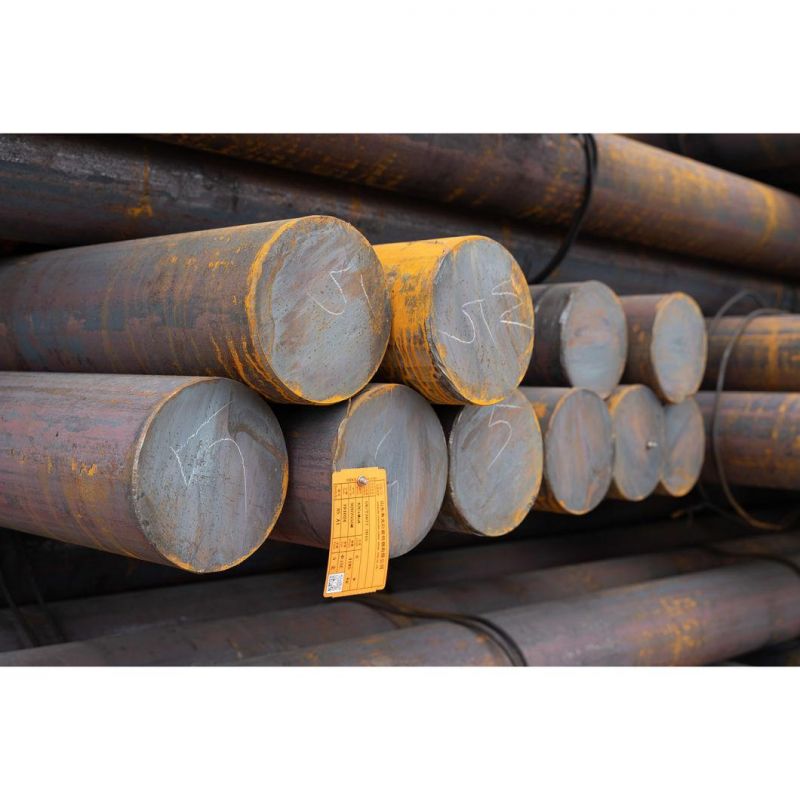

1.1151 Alloy Steel Rod C22e Steel Rod Factory Price
Shandong Zayi Steel Co., Ltd- After-sales Service：Always
- Warranty：3 Years
- Type：Alloy Steel Bar
- Standard：AISI, ASTM, GB, JIS, DIN, BS
- Technique：Hot Rolled
- Application：Structural Steel Bar, Tool Steel Bar, Die Steel Bar
Base Info
- Model NO.：C22E steel rod
- Surface Treatment：Color Coated
- Alloy：Alloy
- Special Use：Mold Steel, Free Cutting Steel, Cold Heading Steel
- out Diameter：20-508mm
- Material：C22e
- Length：6m
- Transport Package：Export Standard Packing
- Specification：20-500mm
- Trademark：Shandong Zayi
- Origin：China
- HS Code：7304113000
- Production Capacity：50000 Tons,Month
Description
Description
Item
Steel grade
Standard
alloy steel
Surface
black or according to customer's request
Type
hot rolled,cold rolled
steel round pipe/tube
Size
Wall thickness
1mm-150mm(SCH10-XXS)
Outer diameter
6mm-2500mm (3/8"-100")
steel square pipe/tube
Size
Wall thickness
1mm-150mm(SCH10-XXS)
Outer diameter
4mm*4mm-800mm*800mm
steel rectangular pipe/tube
Size
Wall thickness
1mm-150mm(SCH10-XXS)
Outer diameter
6mm-2500mm (3/8"-100")
Length
4000mm,5800mm,6000mm,12000mm,or as required.
Trade terms
Price terms
FOB,CIF,CFR,CNF,Ex-work
Payment terms
T/T,L/C,westen union
Delivery time
Prompt delivery or as the order quantity.
Export to
Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA, Brazil,Thailand,Korea,Italy,India,Egypt,Oman,Malaysia,Kuwait,Canada, Viet Nam, Peru,Mexico,Dubai, Russia,etc
Package
Standard export seaworthy package,or as required.
Application
Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields.
Pipes also can be made according to the customer's required.
Contact
If you have any questions,please feel free to contact me.
Container size
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM
Chemical composition % of steel C22E (1.1151): EN 10083-2-2006
| Cr + Mo + Ni = max 0.63 |
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.17 - 0.24 | max 0.4 | 0.4 - 0.7 | max 0.4 | max 0.03 | max 0.035 | max 0.4 | max 0.1 |
| Nominal thickness (mm): | to 16 | 16 - 100 |
| Rm - Tensile strength (MPa) (+N) | 430 | 410 |
| Nominal thickness (mm): | 0.3 - 3 |
| Rm - Tensile strength (MPa) (+A) | 500 |
| Nominal thickness (mm): | 0.3 - 3 |
| Rm - Tensile strength (MPa) (+CR) | 900 |
| Nominal thickness (mm): | to 8 | 8 - 20 | 20 - 50 | 50 - 80 |
| Rm - Tensile strength (MPa) (+QT) | 500 | 470 | 440 | 420 |
| Nominal thickness (mm): | to 8 | 8 - 20 | 20 - 50 | 50 - 80 |
| ReH - Minimum yield strength (MPa) (+QT) | 340 | 290 | 270 | 260 |
| Nominal thickness(mm): | to 16 | 16 - 100 |
| Re - Upper yield strength or Rp0.2 - 0.2% proof strength (MPa) (+N) | 240 | 210 |
| Nominal thickness(mm): | 0.3 - 3 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 400 |
| KV - Impact energy (J) (+QT) | +20° 40-50 |
| KV - Impact energy (J) transverse, (+QT) | +20° 27-32 |
| Nominal thickness (mm): | 0.3 - 3 |
| A - Min. elongation Lo = 80 mm (%) (+A) | 22 |
| Nominal thickness (mm): | to 8 | 8 - 20 | 20 - 50 | 50 - 80 |
| A - Min. elongation at fracture (%) longitud., (+QT) | 20 | 22 | 22 | 22 |
| Nominal thickness (mm): | to 16 | 16 - 100 |
| A - Min. elongation Lo = 5,65 √ So (%) (+N) | 24 | 25 |
| Vickers hardness ( HV): (+CR | 265 |
| Vickers hardness ( HV): (+A) | 155 |
| Brinell hardness (HB): (+A) | 156 |
Inspection:
F A Q
1. How can I know whether you are a reliable company?
We are engaged in steel for nearly 10 years and have high visibility in domestic. We welcome you to inspect our company at any time.
2. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately.
3. Do you provide samples?
Yes, we can provide most of the product samples. We will charge a little sample fee. But we will return the charge if you place an order. if you asked to use DHL, Blue Dart Express, FedEx, etc. to send samples, you can inform us in advance to prepare.
4. Can I visit your company?
Of course, If you want to order our products and visit our company, please contact us to make an appointment.
