• Model NO.：steel angle bar S275J0
• Commodity Name：Steel Angle Bar S355j0
• Key Word：Steel Angle Bar
• Transport Package：Export Standard Packing
• Specification：50*50*5
• Trademark：Shandong Zayi
• Origin：China
• HS Code：7228709000
• Production Capacity：50000 Tons,Month

Basic Info.

Model NO. steel angle bar S275J0 Commodity Name Steel Angle Bar S355j0 Key Word Steel Angle Bar Transport Package Export Standard Packing Specification 50*50*5 Trademark Shandong Zayi Origin China HS Code 7228709000 Production Capacity 50000 Tons/Month

Product Description

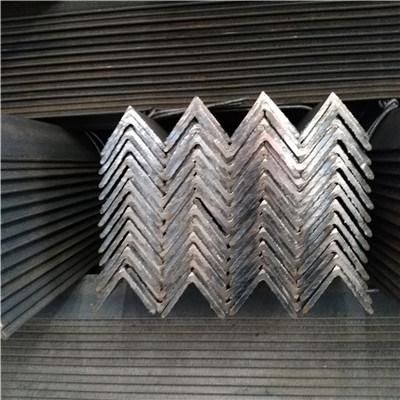

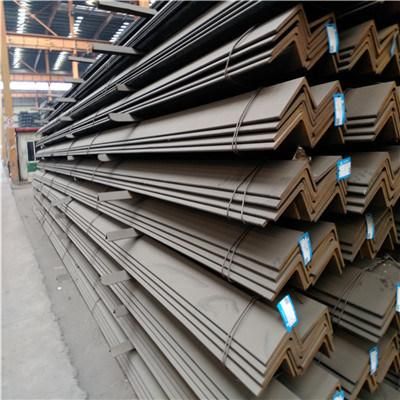

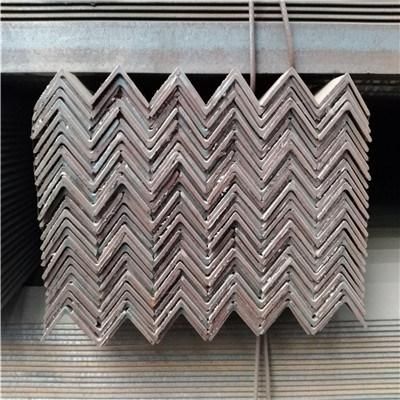

Product Name	steel angle bar S275J0 1.0143 hot rolled angle steel bar
Specifications	equal angle steel bar:20-250mm unequal angle steel bar:20-250mm Thickness: 1.2mm~20mm  Length: 2.0m~12m
Material	Low carbon steel
Steel Grade	Q195 = S195 / A53 Grade A Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2 Q355 = S355JR / A500 Grade B Grade C
Standard	EN10025
Surface Anti-rusty Coating	black galvanized
Pipe Ends	Plain ends
Certificates	ISO 9001 / ISO 18001 / ISO 14001 / CE
Packing and Shipment	1. OD 300mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles  2. above OD 300mm in bulk or according to custom opinion  3. 25 tons/container and 5 tons/size for a trial order;  4. For 20" container the max length is 5.8m;  5. For 40" container the max length is 11.8m.
Usage	Construction / building materials steel pipe Structure steel pipe Solar structure component steel pipe Fence post steel pipe Greenhouse frame steel pipe
Trade terms	FOB, CFR, CIF, EXW, FCA
Payment terms	T/T, LC
Delivery time	7-15 days (based on quantity) after receiving advanced payment by T/T or LC .
Main market	Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania

The chemical of S275J0 (1.0143):   EN 10025-2-2004

Nominal thickness =< 40(mm) CEV max = 0.40

C	Mn	P	S	N	Cu	CEV
max   0.18	max   1.5	max   0.035	max   0.035	max   0.012	max   0.55	max   0.42

Mechanical properties of steel   S275J0 (1.0143)

Nominal thickness (mm):	to 3	3 - 100	100 - 150	150 - 250
Rm - Tensile strength (MPa) Flat and long products	430-580	410-560	400-540	380-540



Nominal thickness (mm):	to 16	16 - 40	40 - 63	63 - 80	80 - 100	100 - 150	150 - 200	200 - 250
ReH - Minimum yield strength (MPa) Flat and long products	275	265	255	245	235	225	215	205



KV - Impact energy (J) longitud.,	-20° 27	0° 27	+20° 27



Nominal thickness (mm):	to 1	1 - 1.5	1.5 - 2	2 - 2.5	2.5 - 3
A - Min. elongation Lo = 80 mm (%) parallel,	15	16	17	18	19



Nominal thickness (mm):	3 - 40	40 - 63	63 - 100	100 - 150	150 - 250
A - Min. elongation Lo = 5,65 √ So (%) parallel,	23	22	21	19	18

Why choose us???
1.Q:How many years are you focus on exporting steel products?
Our company export steel products over 10 years.

2.Q:Where is your factory located? How can I visit there?
We are located in Liaocheng City,Shandong Province,China.

3.Q:Can I get some samples?
Yes, we can provide samples depend on demands.

4.Q:What do your factory do regarding quality control?
We will provide formal mtc documents, if you like, when the product is ready, welcome to arrange SGS department inspect the goods, or you can come and checking the goods directly. From material to products, we inspect each process to keep good quality.

5.Q:How about payment?
Both T/T and L/C can be accepted.

6.Q:How about MOQ?
At least 1-3 tons.
