Hr High Carbon Steel Mould Flat Steel Bar S20c/S25c/S30c/S35c/S40c/S45c/S50c/S55c Block Sets
HK JIMI STEEL CO., LTD.- Standard：DIN, JIS, AISI, ASTM, GB
- Technics：Hot Rolled,Hot Forged
- Application：Tool Steel Bar
- Surface：Black
- Alloy：Alloy
- Special Use：High-strength Steel Plate, Wear Resistant Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel
Base Info
- Model NO.：Carbon steel S50C c45
- Test：SGS , Ut 100% , Element Testing
- Cusoimized：Yes , OEM
- Shape：Plate,Flat Bar,Round Bar,Block
- Delivery Condition：Hot Rolled,Cold-Drawn , Hot Forged
- Business Way：Wholesaler and Retail
- Our Service：24 Hours Online & Prompt Reponse
- Trade Terms：CIF,Fob,CFR,EXW
- Inspection：100% Ut 1921 Step E,E~D,D
- Matrial：Alloy Steel,Carbon ,S50c
- Hardness：150-230hb
- Prooduct Type：Engineering Steel , Plastic Tool Steel
- Size Range：Thickness: 10~800mm Width: 100-2200
- International Standard：AISI, ASTM, BS, DIN, GB, JIS
- Surface&Delivery：Black,Milled,Machined
- Carbon Steel：AISI1050 S50c
- Transport Package：Wood Brick, Wirerope
- Specification：1*20Gp, 1*40Gp
- Trademark：ISO9000,SGS
- Origin：China
- HS Code：7228300000
- Production Capacity：5000 Tons,Month
Description
2. Fabrication and Heat Treatment:
Heat Treatment:
Forging: 1.2083 mold steel are forged at 1093°C (2000°F) down to 899°C (1650°F). Forging below 871°C (1600°F) is not recommended for these steels.
Annealing: 810 - 830 °C
Hardness after annealing: Max230 HB
Stress-relieving: Approx. 650 °C
Hot forming: 1050 - 850 °C
Hardening: 970 - 990 °C
Quenching media: Oil, Vacuum
Hardness after quenching: 30-36 HRC
Hardness after tempering
3.Application:

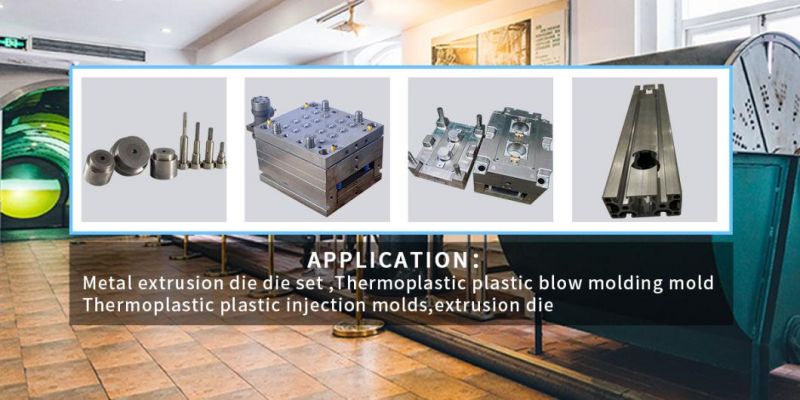

Molds for corrosive plastic materials such as PVC, recycled polymers etc., molds for chemically aggressive plastics and plastics containing abrasive fillers, mold inserts, dies and gauges for PVC extrusions, screws and barrels for extruders, molds for automotive, food, medical and optical industry such as spectacles, compact discs, lenses.

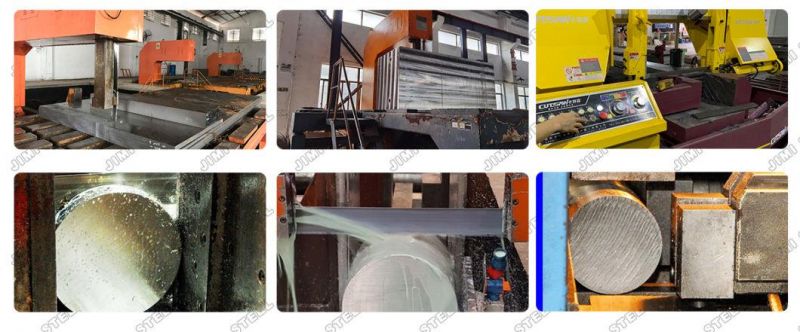

4.Our Service:A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc
C. Ultrasonic testing and hardness testing
6. About us :

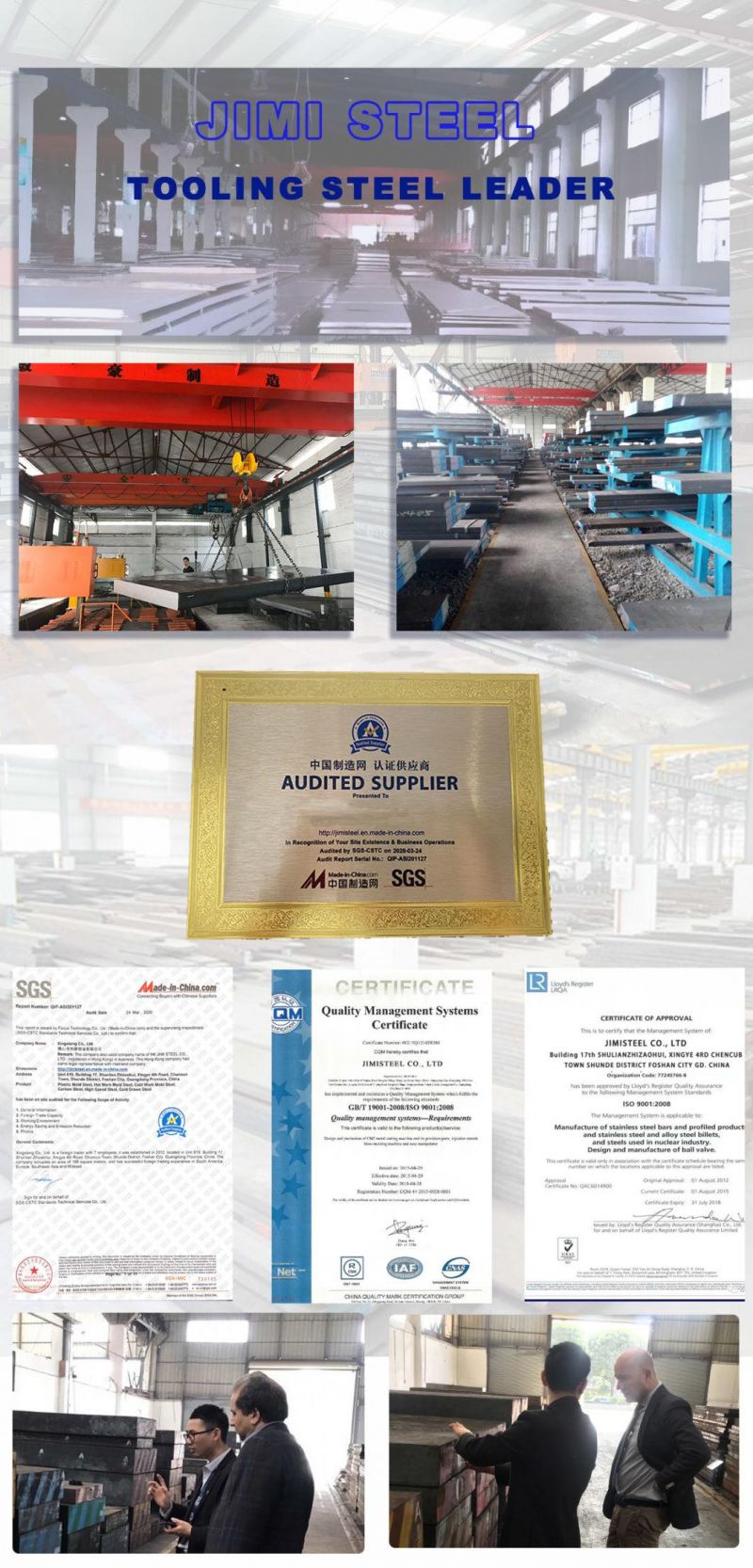

HK JIMI STEEL Was established in 2012, located in the Shunde District of Guangdong Province, It is an import and export trading company mainly engaged in advanced special steel, die steel, alloy steel, and steel processing general machinery and equipment. The company adheres to the concept of "high quality, high requirements and good faith",
Cooperating with more than 20 famous steel mills in China, rich in spot stock of products.
Our company has a variety of processing equipment and all kinds of inspection and testing equipment, such as horizontal sawing machine, vertical sawing machine, milling machine, bilateral milling machine, precision milling machine, plane grinder, and so on. The products with short producing time, excellent quality and high precision can provide a high-quality product choice for the vast number of customers at home and abroad.
Our customer group spread all over the domestic provinces and cities, abroad including Europe, the United States, Australia, the Middle East, Southeast Asia and other more than 20 countries and regions, along with over 100 long-term stable cooperation customers...Choosing Xingxiong will bring you a better experience.

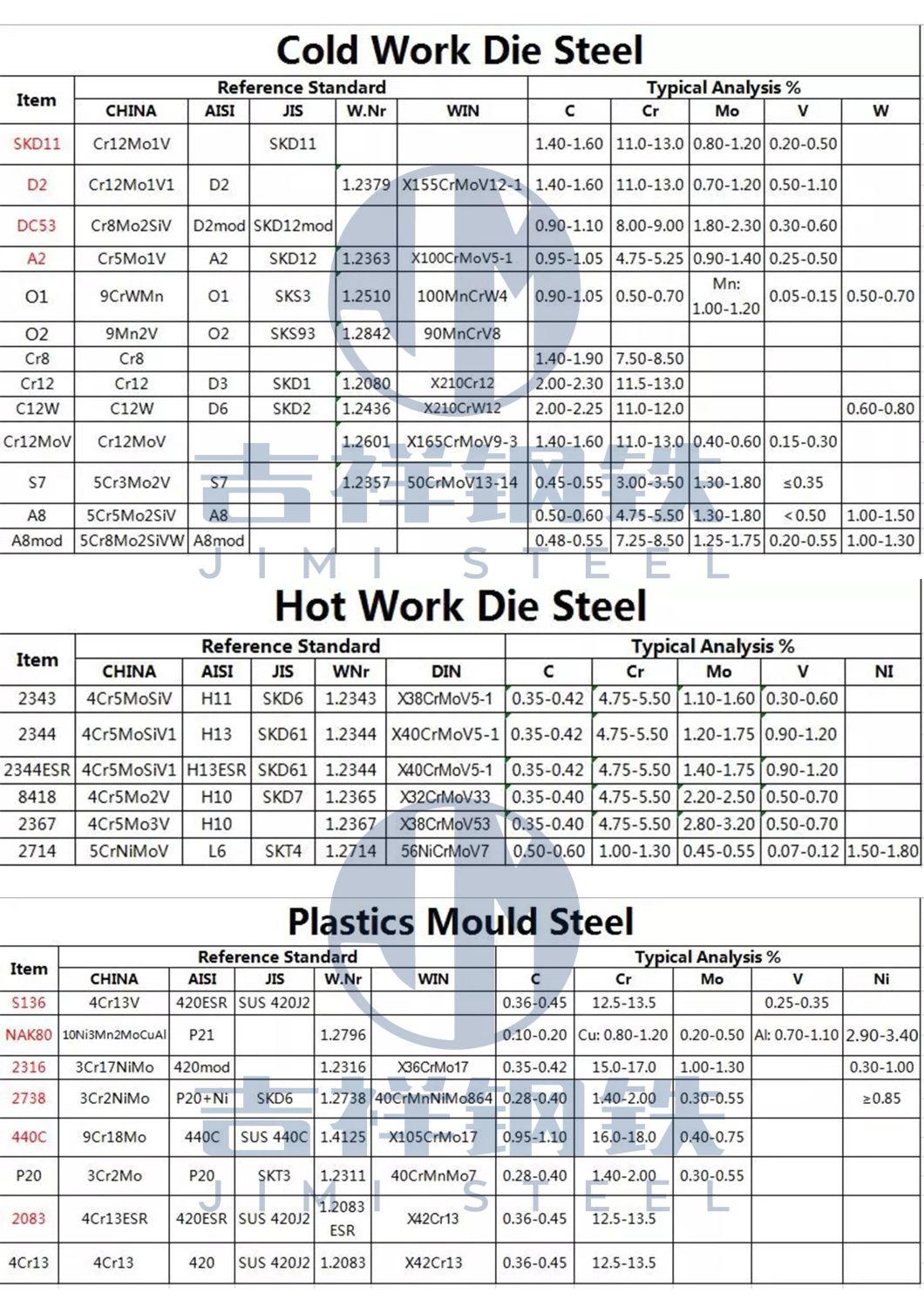

PLASTIC MOULD STEEL: 1.2311, 1.2312, 1.2738, P20, 1.2083, 1.2316, NAK80, P40, 1.2738HH
HOT WORK MOULD STEEL: 1.2344, SKD61, H13, H11, FDAC, 8407
COLD WORL MOULD STEEL: SKD11, D3, SKS3, 1.2080, 1.2379, CR12MOV, O1, D2
STRUCTURAL ALLOY STEEL: 4140, 20CR, 40Cr, 35CrMo, 42CrMo, 38CrmoAi, SCM440, SCM420, 1.7225
CARBON STEEL &: Q235, Gcr15, S45C, S50C, S55C
CNC surface grinding machine, NC side boring machine, Band saw, CNC double head machine, Vertical Band saw, CNC milling machine, Double alloy saw blade, wireless remote control crane, Magnetic chuck
7. Stock:

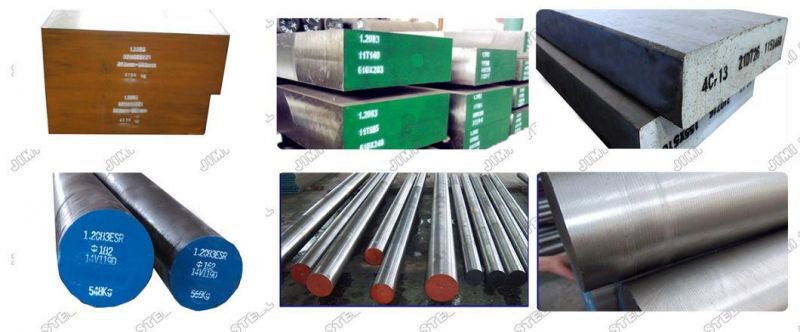

High-quality stock for various steel flat bar and round bar.
Alloy steel / Cold work steel / Hot work steel / Plastic mold steel and Stainless
For more tool and die steel please check the list:
8.Delivery Time
1) For abundant stock, 7-15 days.
2) For customized products, 15-45 days.

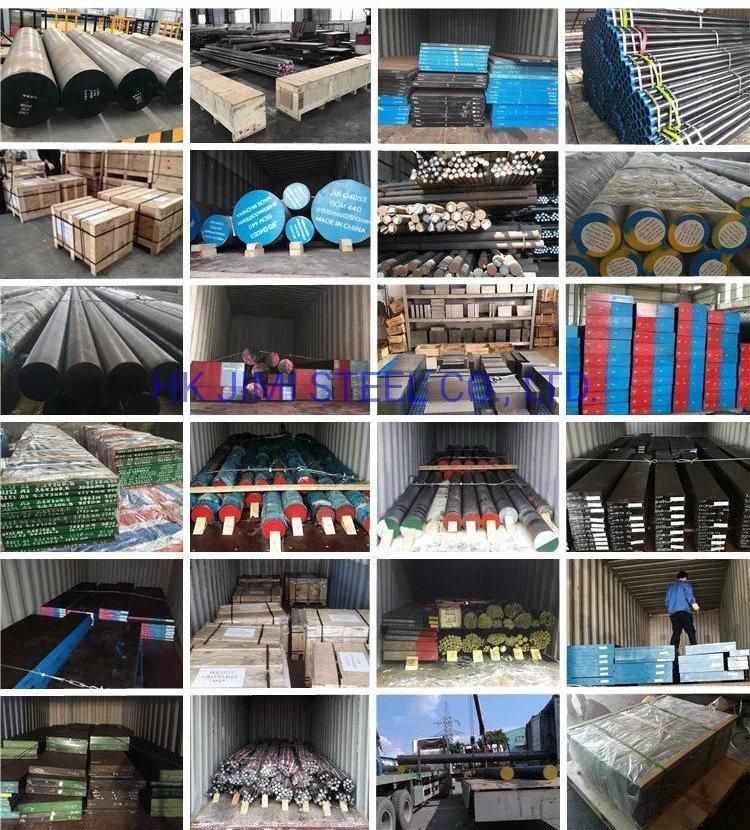

Loading Details:
9.FAQ:
Q1: What do you do for the control of the quality?
A1: Before loading into the container, our products will all be inspected by ultrasonic inspection. Quality Grade conforms to SEP 1921-84 E/e, D/d, C/c as per customer's request.
Q2:: What are your hot-selling products?
A2: D2/1.2379, H13/1.2344, CR12MOV, DC53, CR8, abundant stock for both plates and rounds. Competitive prices and short lead-time.
Q3: Can we visit your company and factory?
A3: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
Q4: Are you a manufacturer or merely a trader?
A4: We are a group of companies and owned manufacturer bases and trading companies. We specialized in plastic mold steel, hot work mold steel, cold work mold steel, alloy steel for mechanical, high-speed steel, etc. All materials are of high quality and competitive price.
