Abrasion resistance Tool Steel for plastic Mould (1.2738/P20+Ni/3Cr2NiMo/718)
Guangzhou Changfeng Steel Co., Ltd.- Type：Steel Plate
- Standard：ASTM, AISI, GB, JIS, DIN, BS
- Certification：ISO, RoHS
- Surface Treatment：Prime Steel
- Technique：Hot Rolled
- Application：Mold & Dies
Base Info
- Model NO.：DIN 1.2738,AISI P20+Ni,GB 3Cr2NiMo,718
- Special Use：High-strength Steel Plate, Wear Resistant Steel
- Stock：Stock

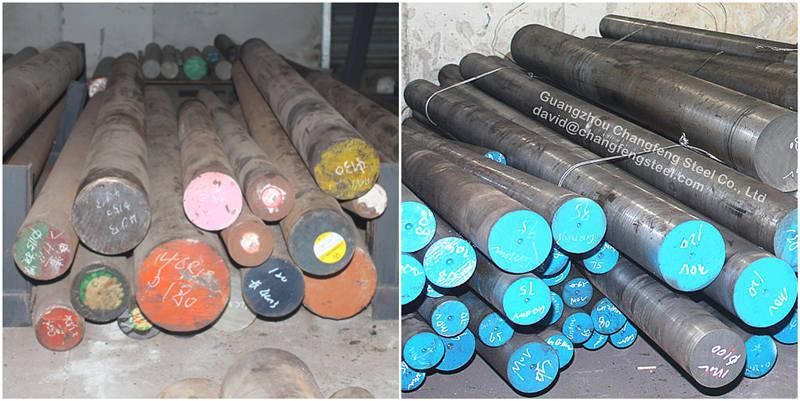

- Shape：Round Bar or Flat Steel or plate
- Thickness：5-800 mm
- Length：100-5800 mm
- Width：100-2200 mm
- Composition：Ferrous Steel Scrap
- Grade：AISI,DIN,JIS,GB
- Heat Treatment：Annealed , Q+T

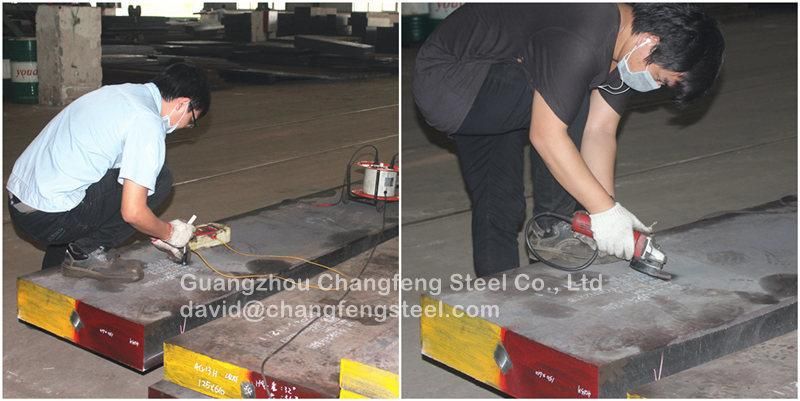

- Test：UT 100% , SGS
- Delivery Quantiity：Include MOQ
- Payment：T,T L,C at Sight
- Transport Package：Export Standard Packing or Customers′demand
- Specification：5-800*100-2200*100-5800mm
- Trademark：CF STEEL
- Origin：China
- HS Code：72254
- Production Capacity：1000 Mt,Per Month
Description
Elastic ModulusHB Mpa KSI Mpa KSI % Z% GPA KSI 300 826 120 993 145 17 59 205 29745
4. Features
a. uniform hardness qualitative of Material
b. No quenching crack danger,Without heat treatment costs that can reduce the tool cost
c. Excellent polishing performance
d. Good machining performance
e. Hardness: 33-37HRC
5. The process flow
1)Hot rolled or forged condition, Pre-harden &tempering , black surface
2)Hardness: 30~36HRC
3) Hot rolled technology: EAF+LF+VD
Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface
5. Surface treatment
black/polished/machined
Technology:hot rolled/forged/cold drawn
Heat treatment:annealing/Q+T
7. Application
Used for various large -sized mirror plastic mould,percision mould
a,Leather grain, pear skin grain etching, imitation stone moulds
b,Clear plastic container classes such as pencil case, commodity high gloss mould
c,Such as refrigerator, air conditioner production to demand higher large mould

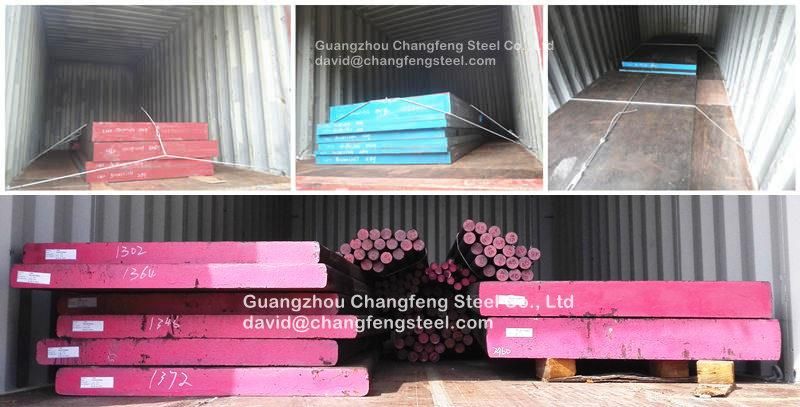

8. Packing
Standard Export Packing or As per request
9. Delivery Date
Abundant stock: 15-20 days
Customized products: 30-50 days
4. Features
a. uniform hardness qualitative of Material
b. No quenching crack danger,Without heat treatment costs that can reduce the tool cost
c. Excellent polishing performance
d. Good machining performance
e. Hardness: 33-37HRC
5. The process flow
1)Hot rolled or forged condition, Pre-harden &tempering , black surface
2)Hardness: 30~36HRC
3) Hot rolled technology: EAF+LF+VD
Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface
5. Surface treatment
black/polished/machined
Technology:hot rolled/forged/cold drawn
Heat treatment:annealing/Q+T
7. Application
Used for various large -sized mirror plastic mould,percision mould
a,Leather grain, pear skin grain etching, imitation stone moulds
b,Clear plastic container classes such as pencil case, commodity high gloss mould
c,Such as refrigerator, air conditioner production to demand higher large mould
8. Packing
Standard Export Packing or As per request
9. Delivery Date
Abundant stock: 15-20 days
Customized products: 30-50 days
