ASTM A249 TP304L/Tp316/Tp316L Cold Rolling/Hot Rolling Stainless Steel Pipe
Qingdao Ironsteel International Trading Co., Ltd.- Type：Seamless
- Technique：Cold Rolled , Hot Rolled, ERW
- Material：Stainless Steel
- Surface Treatment：Polished
- Usage：Pipeline Transport, Oil,Gas Drilling, Machinery Industry, Chemical Industry, Construction & Decoration, Special Purpose
- Section Shape：Round
Base Info
- Model NO.：A249 stainless steel pipe
- Outer Diameter：1,2′′~26′′
- Wall Thickness：0.8mm~40mm
- Length：6 Meters, 9meters, 12meters, Random Length
- Transport Package：Bundled, Wrapped, Wooden Cased.
- Specification：ASTM A249
- Origin：China
- HS Code：73064000
- Production Capacity：100 Tons Per Month
Description
ASTM A249 Chemical Composition % MaxC Mn P S Si Cr Ni Mo N B Nb Ti TP304 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 ^ ^ ^ . ^ TP304L 0.035 2.00 0.045 0.030 1.00 18.0-20.0 8.0-12.0 ^ ^ ^ ^ TP316 0.08 2.00 0.045 0.030 1.00 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^ TP316L 0.035 D 2.00 0.045 0.030 1.00 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^ TP321 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70 TP347 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 10C -1.10 ^
MaterialHeat treatment Temperure F (C) Min. Hardness Brinell Rockwell TP304 Solution 1900 (1040) 192HBW/200HV 90HRB TP304L Solution 1900 (1040) 192HBW/200HV 90HRB TP316 Solution 1900(1040) 192HBW/200HV 90HRB TP316L Solution 1900(1040) 192HBW/200HV 90HRB TP321 Solution 1900(1040) F 192HBW/200HV 90HRB TP347 Solution 1900(1040) 192HBW/200HV 90HRB
OD, inchOD Tolerance inch(mm) WT Tolerance % Length Tolernace inch(mm) + - ≤ 1 / 2 ± 0.005 ( 0.13 ) ± 15 1 / 8 ( 3.2 ) 0 > 1 / 2 ~1 1 / 2 ± 0.005(0.13) ± 10 1 / 8 (3.2) 0 > 1 1 / 2 ~< 3 1 / 2 ± 0.010(0.25) ± 10 3 / 16 (4.8) 0 > 3 1 / 2 ~< 5 1 / 2 ± 0.015(0.38) ± 10 3 / 16 (4.8) 0 > 5 1 / 2 ~< 8 ± 0.030(0.76) ± 10 3 / 16 (4.8) 0 8~< 12 ± 0.040(1.01) ± 10 3 / 16 (4.8) 0 12~< 14 ± 0.050(1.26) ± 10 3 / 16 (4.8) 0 No.2B The surface brightness and flatness of no2B is better than no2D. then through a special surface treatment to
improve its mechanical properties,No2B could nearly satisfy comprehensive uses. No.3 Polished with abrasive belt of git#100-#200, have better brightness with discontinuous coarse stria, used as
inner and external ornaments for building, electrical appliances and kitchen utensils etc. No.4 Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtub
buildings inner and external ornaments electrical appliances kitchen utensils and food processing
equipment etc. HL Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators,
door of building, frontal plate etc. BA Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus,
ornament etc. 8K The product have excellent brightness and prefer reflexivity can to be the mirror.

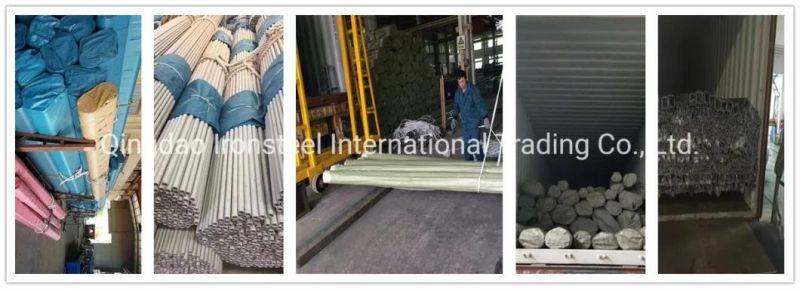

Packaging & Shipping
We are very profession in package. Packaging is one of the best service of CMY,
in order to prevent the damage during transportantion,our finished products are
packaged carefully.All of our stainless steel products will be transported wooden pallets.
Customers will be guaranteed that the product they received from us can go directly into use or send out to the customers as finished product.
