• Model NO.：EL-AP
• Length：1-12m
• Thickness：1 - 59.54 mm
• Delivery Time：15-30 Days After The Order Confirm
• Alloy or Not：Alloy
• Secondary or Not：Non Secondary
• Standard or Not：Standard
• Price Term：Fob,CIF,CNF
• Payment：L,C,T,T
• MOQ：as Requested

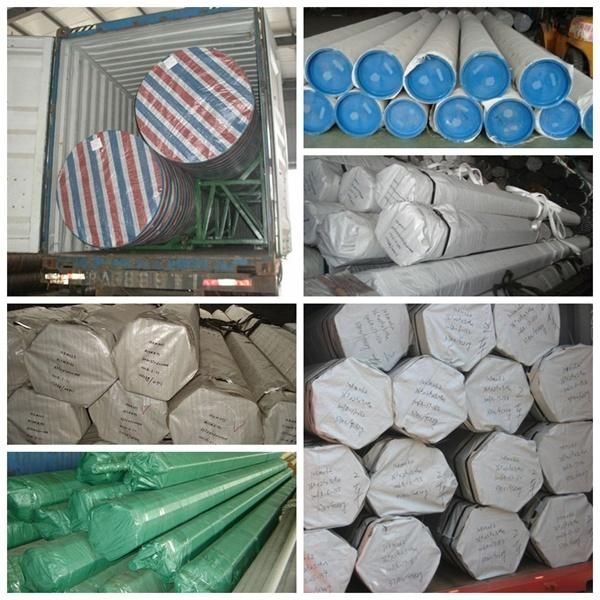

• Transport Package：in Bundle or as Requested
• Specification：21 - 660.4 mm
• Trademark：Kingmetal
• Origin：China
• HS Code：73045110
• Production Capacity：50000 Ton Per Month

StandardASTM, BS, JIS, DIN, EN, GB
Steel GradeASTM A213 T2,T5,T9,T11,T12,T22; ASTM A199, T5,T9,T11,T22
ASTM A335 P2,P5,P9,P11,P12,P22.
JIS G3462 STBA20,STBA22,STBA23,STBA24,STBA25,STBA26
JIS G3458 STPA20,STPA22,STPA23,STPA24,STPA25,STPA26.
DIN 17175
13CrMo44, 10CrMo910,12CrMo195,X12CrMo91Surface:black painted,oil coated,galvanized or as requested.End protectionPlastic capsApplicationsElectrical Resistance,Bolier Pipe, Heat Exchanger Tubes,Petroleum and Oil,Chemical Industry, Energy sources, Metallurgy, Contruction,etc.
Advantage1. The fastest delivery
2. The lowest price
3. Most comprehensive standards and materials for your choice.
4.100% export.
5. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
Alloy pipe
12Cr1MoVG
GB/T5310-2008
8-1240*1-200
Alloy steel pipe applies to petroleum,
chemical industry, electric power, boiler,
high temperature resistant, low temperature
resistant,corrosion resistant steamless steel
pipe used.Our company has cooperative relation
between the domestic agents.Alloy steel pipe
can be made according to the customers
requirements.
12CrMoG
GB6479-2000
15CrMoG
GB9948-2006
12Cr2Mo
DIN17175-79
Cr5Mo
ASTM SA335
Cr9Mo
ASTM SA213
10Cr9Mo1VNb
JISG3467-88
15NiCuMoNb5
JISG3458-88
12Cr2MoWVTiB
Chemical Composition (%)
Grade
C
Si
Mn
P
S
Cr
Mo
P5
Max.0.15
Max.0.50
0.3-0.6
Max.0.025
Max.0.025
4-6
0.45-0.65
P11
0.05-0.15
0.5-1.0
0.3-0.6
Max.0.025
Max.0.025
1.0-1.5
0.44-0.65
P12
0.05-0.15
Max.0.50
0.3-0.61
Max.0.025
Max.0.025
0.8-1.25
0.44-0.65
P22
0.05-0.15
Max.0.50
0.3-0.6
Max.0.025
Max.0.025
1.9-2.6
0.87-1.13
Mechanical properties
Grade
Yield point (Mpa)
Tensile strength (Mpa)
Elongation(%)
Impact value(J)
P5
≥205
≥415
See table
≥35
P11
≥205
≥415
See table
≥35
P12
≥220
≥415
See table
≥35
P22
≥205
≥415
See table
≥35
