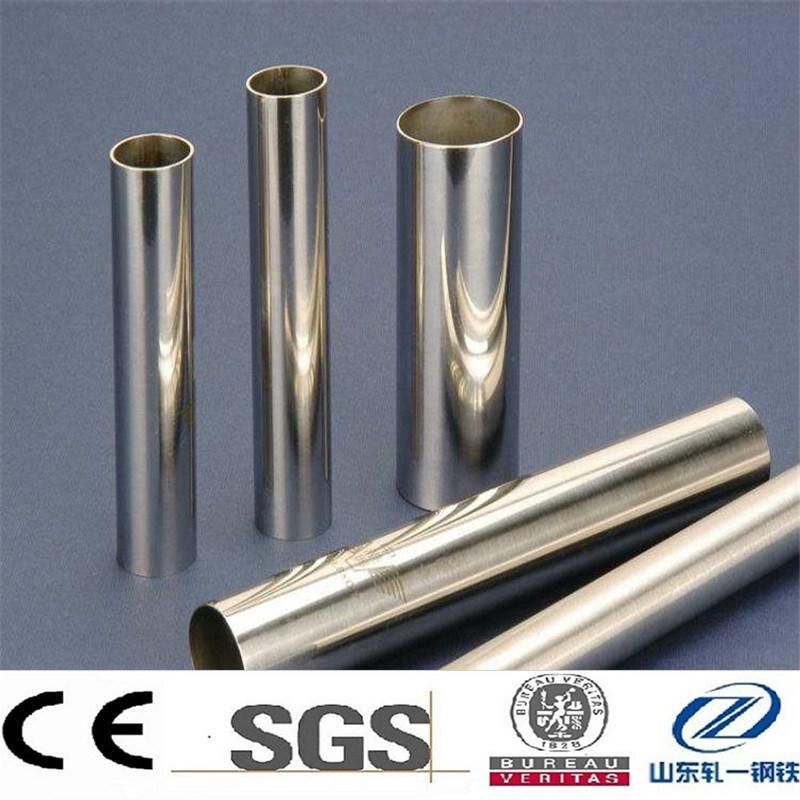

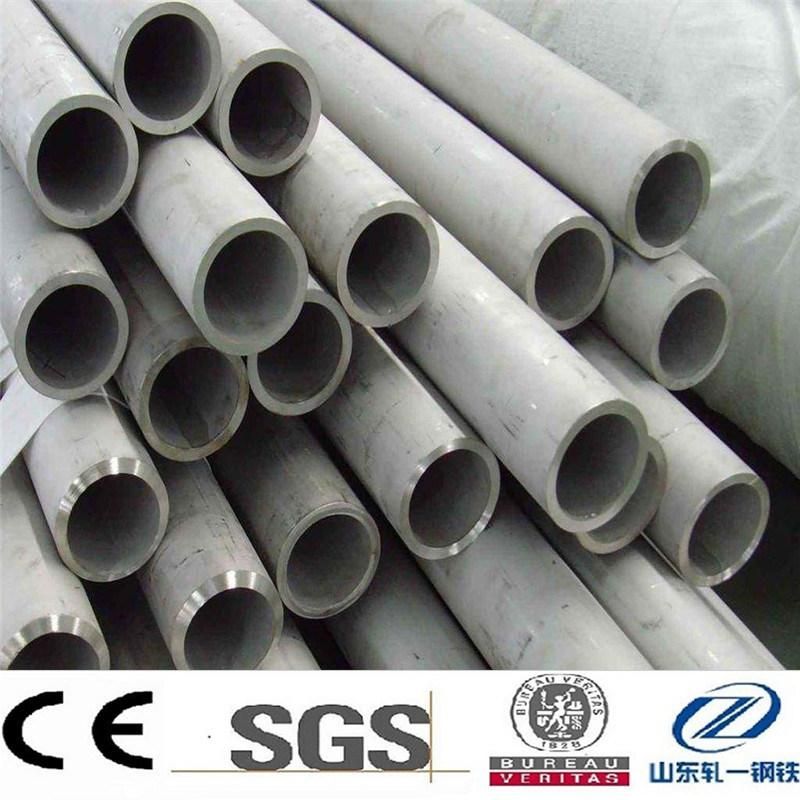

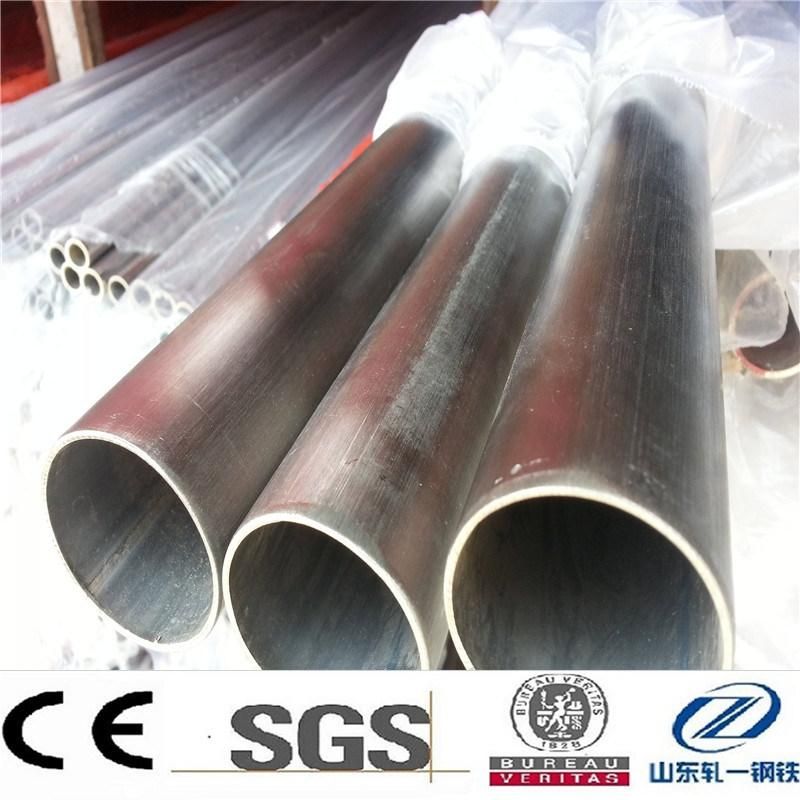

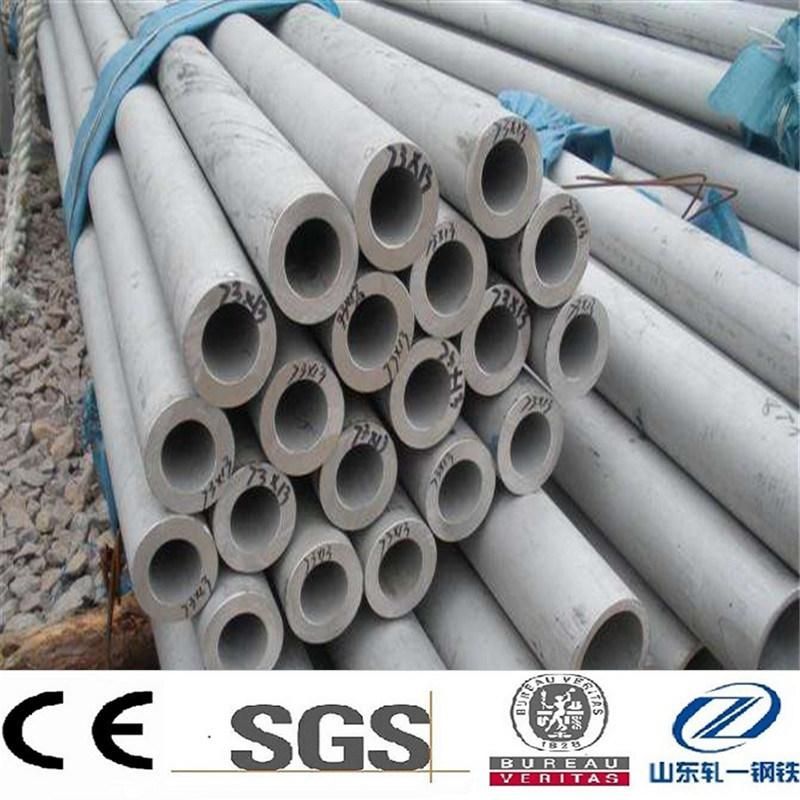

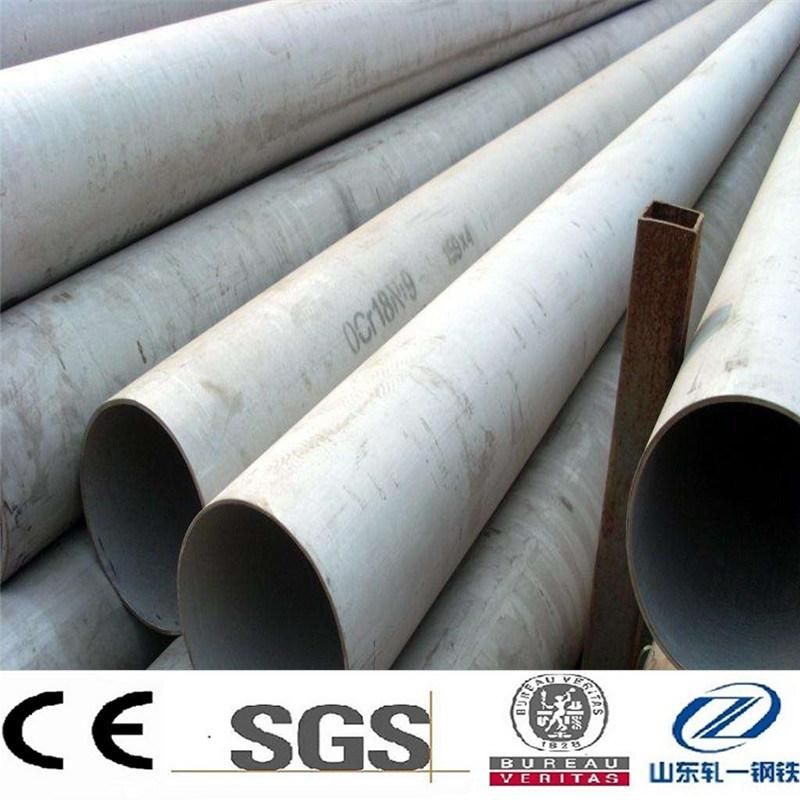

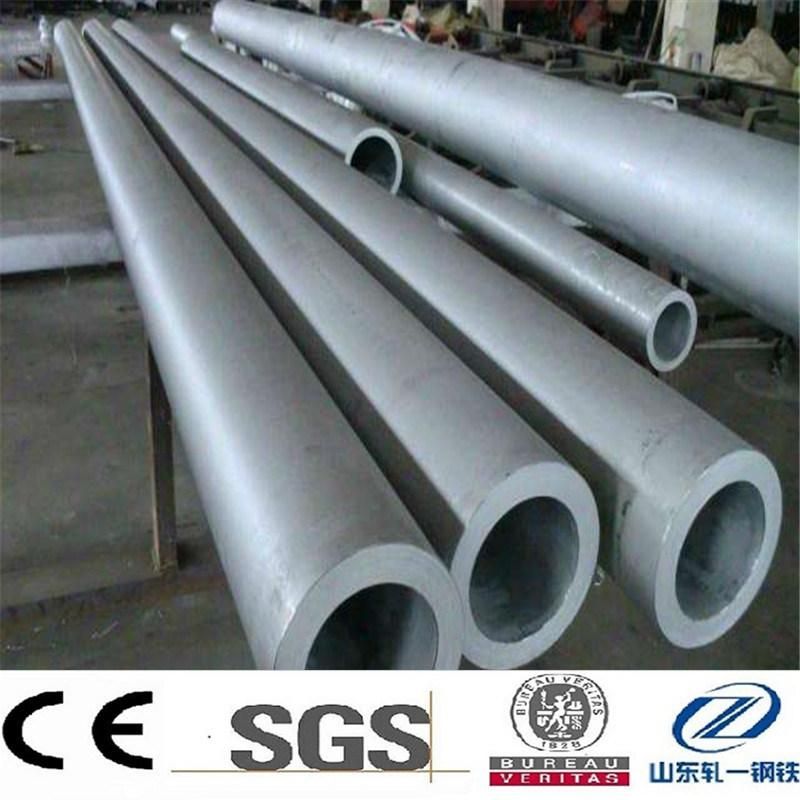

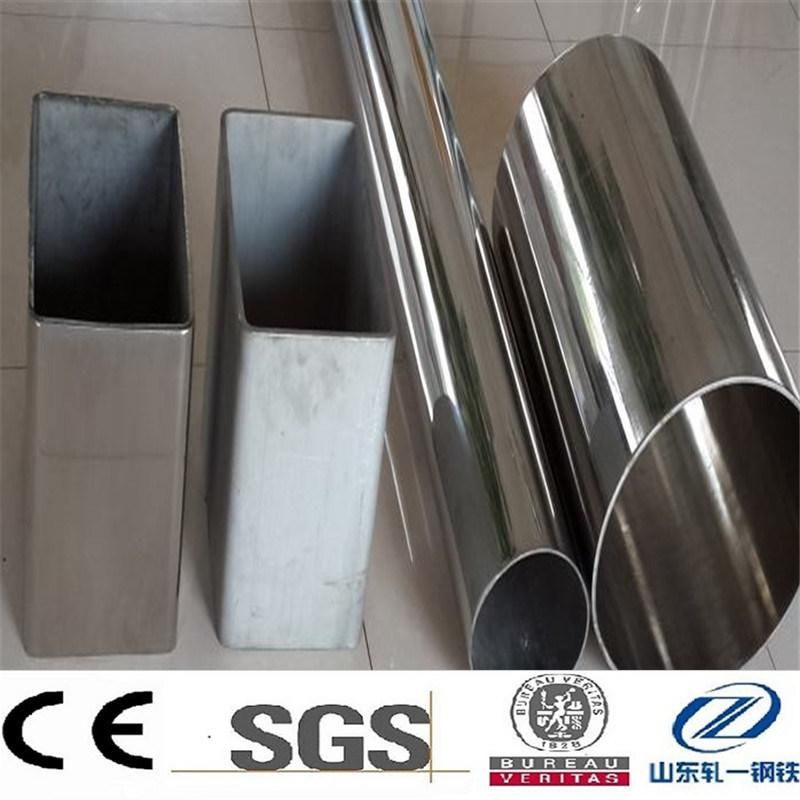

Inconel600 Seamless Stainless Steel Tube
Shandong Zayi Steel Co., Ltd- Type：Stainless Steel Pipes
- Standard：ASTM, AISI, GB, JIS, DIN, EN
- Grade：300 Series
- Certification：ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
- Shape：Round
- Technique：Hot Rolled
Base Info
- Model NO.：inconel600 tube
- Surface Treatment：Pickling
- out Diameter：20-508mm
- Thickness：1-50mm
- Length：6m
- Transport Package：Export Standard Packing
- Specification：42*2
- Trademark：Shandong Zayi
- Origin：China
- HS Code：7304113000
- Production Capacity：50000 Tons,Month
Description
Element, proportion by mass (%)Ni Cr Fe Mo Nb & Ta Co Mn Cu Al Ti Si C S P B 600 ≥72.0[a] 14.0-17.0 6.0-10.0 N/A ≤1.0 ≤0.5 ≤0.5 ≤0.15 ≤0.015 617 44.2-61.0 20.0-24.0 ≤3.0 8.0-10.0 10.0-15.0 ≤0.5 ≤0.5 0.8-1.5 ≤0.6 ≤0.5 0.05-0.15 ≤0.015 ≤0.015 ≤0.006 625 ≥58.0 20.0-23.0 ≤5.0 8.0-10.0 3.15-4.15 ≤1.0 ≤0.5 ≤0.4 ≤0.4 ≤0.5 ≤0.1 ≤0.015 ≤0.015 690 ≥58 27-31 7-11 ≤0.50 ≤0.50 ≤0.50 ≤0.05 ≤0.015 Nuclear grade 690 ≥58 28-31 7-11 ≤0.10 ≤0.50 ≤0.50 ≤0.50 ≤0.04 ≤0.015 718 50.0-55.0 17.0-21.0 Balance 2.8-3.3 4.75-5.5 ≤1.0 ≤0.35 ≤0.3 0.2-0.8 0.65-1.15 ≤0.35 ≤0.08 ≤0.015 ≤0.015 ≤0.006 X-750 ≥70.0 14.0-17.0 5.0-9.0 0.7-1.2 ≤1.0 ≤1.0 ≤0.5 0.4-1.0 2.25-2.75 ≤0.5 ≤0.08 ≤0.01
Physical Properties of inconel600
Density: 0.304 lbs/in3, 8.42 g/cm3
Electrical Resistivity, ohm-circ mil/ft, (µ0-m): 620 (1.03)
Specific Heat, Btu/lb-°F, (J/kg-°C): 0.106 (444)
Mean Coefficient of Thermal Expansion: in/in/° F (mm/m/°C)
70 -20 0 ° F (21 -93 °C) -6.9 x 10·6 (12.4)
70 -40 0 ° F (21 -20 4 °C)-7.3 x 10·6 (13.1)
Modulus of Elasticity: ksi (MPa)
30 x 103 (20 7 x 103) in tension
Magnetic Permeability, H = 20 0 Oersteds:
Annealed: 1.010
Melting Point: 2470 -2576 ° F (1354 -1413 °C)
Steel Grade Tensile Strength, N/mm2 (min) Yield Strength, N/mm2 (min) Elongation, % (min) TP304 515 205 35 TP304L 485 170 35 TP316 515 205 35 TP316L 485 170 35 TP321 OD < 17,1 mm - 515;
OD > 17,1 mm - 485 OD < 17,1 mm - 205;
OD > 17,1 mm - 170 35
ASTM A312 Chemical Composition:Steel Grade C Si Mn Cr Ni Mo S P TP304 0,08 0,75 2 18 - 20 8 - 11 - 0,03 0,04 TP304L 0,035 0,75 2 18 - 20 8 - 13 - 0,03 0,04 TP316 0,08 0,75 2 16 - 18 11 - 14 2 - 3 0,03 0,04 TP316L 0,035 0,75 2 16 - 18 10 - 15 2 - 3 0,03 0,04 TP321 0,08 0,75 2 17 - 20 9 - 13 - 0,03 0,04
Inspection:
F A Q
1. How can I know whether you are a reliable company?
We are engaged in gift box for nearly 7 years and have high visibility in domestic. We welcome you to inspect our company at any time.
2. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately.
3. Do you provide samples?
Yes, we can provide most of the product samples. We will charge a little sample fee. But we will return the charge if you place an order. if you asked to use DHL, Blue Dart Express, FedEx, etc. to send samples, you can inform us in advance to prepare.
4. Can I visit your company?
Of course, If you want to order our products and visit our company, please contact us to make an appointment.
5. Can you make boxes according to my request ?
Yes,customization service is available,OEM business is appreciated.
When you place the orders,we arrange the production asap,When finish the orders, we will inform you and also we arrange the shipping in the same time.
6. How much is the freight?
It depends on the number and transport methods. When asked about the freight, we want you to let us know your detailed information , such as the product name and quantity and your favorite mode of transport, as well as your designated port or airport. We thank you for providing us the information to estimate the cost.
Physical Properties of inconel600
Density: 0.304 lbs/in3, 8.42 g/cm3
Electrical Resistivity, ohm-circ mil/ft, (µ0-m): 620 (1.03)
Specific Heat, Btu/lb-°F, (J/kg-°C): 0.106 (444)
Mean Coefficient of Thermal Expansion: in/in/° F (mm/m/°C)
70 -20 0 ° F (21 -93 °C) -6.9 x 10·6 (12.4)
70 -40 0 ° F (21 -20 4 °C)-7.3 x 10·6 (13.1)
Modulus of Elasticity: ksi (MPa)
30 x 103 (20 7 x 103) in tension
Magnetic Permeability, H = 20 0 Oersteds:
Annealed: 1.010
Melting Point: 2470 -2576 ° F (1354 -1413 °C)
OD > 17,1 mm - 485
OD > 17,1 mm - 170
ASTM A312 Chemical Composition:
