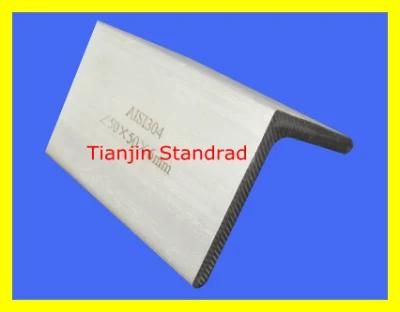

SUS 316L Pickling Stainless Steel Angle Bar
Shandong Standard Metal Products Co., Ltd.- Certification:ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
- Grade:300 Series
- Standard:ASTM, AISI, GB, JIS, DIN, EN
- Type:Stainless Steel Angles
- Shape:Angle
- Technique:Hot Rolled
Base Info
- Specification:ASTM, JIS, GB, DIN, EN, AISI
- Transport Package:Export Standard Package or Be Required
- Brand:Tisco Baosteel
- Test:SGS&ISO
- Daimeter:4mm to 800mm
- Length:4m, 5.8m, or as Required
- Surface Treatment:Bright
- Model NO.:304, 316L
- Trademark:Standard
- Origin:Tianjin China Mainland
- HS Code:7222400000
- Production Capacity:5000mt,M
Description
316l Stainless Steel angle barStandard ASTM A554, A312, A249, A269 and A270 Material Grade 304, 316, 201, 202, 316L, 430 Size Range 25× 25× 3_ 100× 100× 10mm Length 6m or as customers' request
Tolerance a) width: +/-0. 15mm b) Thickness: +/- 0.02mm c) Length: +/-4. 5mm - 0mm Surface 180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish)
400G, 500G, 600G or 800G Mirror finish Application Ornamental tubes, Decoration construction, upholstery, industry instruments Test Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT
Chemical Composition of Material
Composition
Material 201 202 304 316 430 C ≤ 0.15 ≤ 0.15 ≤ 0.08 ≤ 0.08 ≤ 0.12 Si ≤ 1.00 ≤ 1.00 ≤ 1.00 ≤ 1.00 ≤ 1.00 Mn 5.5-7.5 7.5-10 ≤ 2.00 ≤ 2.00 ≤ 1.00 P ≤ 0.06 ≤ 0.06 ≤ 0.045 ≤ 0.045 ≤ 0.040 S ≤ 0.03 ≤ 0.03 ≤ 0.030 ≤ 0.030 ≤ 0.030 Cr 16-18 17-19 18-20 16-18 16-18 Ni 3.5-5.5 4-6 8-10.5 10-14 Mo 2.0-3.0
Mechanical Property Material Item 201 202 304 316 Tensile Strength ≥ 535 ≥ 520 ≥ 520 ≥ 520 Yield Strength ≥ 245 ≥ 205 ≥ 205 ≥ 205 Extension ≥ 30% ≥ 30% ≥ 35% ≥ 35% Hardness (HV) < 253 < 253 < 200 < 200
Tolerance
400G, 500G, 600G or 800G Mirror finish
Chemical Composition of Material
Composition
Material
Mechanical Property
